ZOHD Dart V2 ZOHD Dart V2

ZOHD Dart V2

Description:

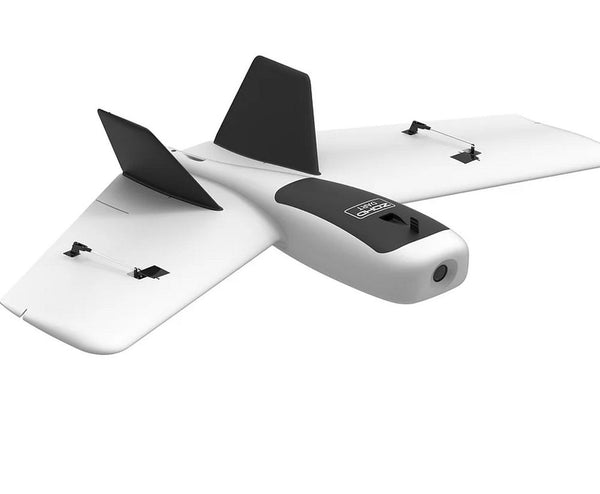

This Dart Sweep Forward Wing is the first Subter-250g fixed wing that made by EPP material. Detachable main wing and twin-tail wing makes the Dart Wing very easy to install and carry for outdoor flying, what’s more, the wings will be disconnected during a crash, thus to protect the main wing and tail wing. You can put a lot of FPV gear and big battery inside the spacious hatch with “NACA” air-inlet. The aileron was enhanced by carbon strips to avoid any flex during flying and enable a precise control.

Specifications:

1- Brand Name: ZOHD

2- Item Name: Dart sweep forward Wing

3- Wingspan: 635mm (25")

4- Length: 406mm (16")

5- Flying speed: 15km/h - 80+km/h

6- Motor: 2006 2400kv

7- ESC: 30A w/5V 1A BEC

8- Servo: 2pcs 4.3g Digital Servo

9- Propeller: 6x3

10- PNP Weight: 145g(0.31lb)

10- Recommended Battery: 11.1V 1300-1800mAh (not included)

Features:

1- Innovative Sweep forward wing design with large wing size and twin tail wing, avoid stalling during flying.

2- Classical and practical “S” high efficiency airfoil, create powerful elevating force.

3- Lightweight but durable EPP molded wing and fuselage, enhanced by built in carbon fiber spars, durable and super crash resistance.

4- Detachable wing and tail wing structure, compact size, portable and easy to carry for outdoor FPV fly. “No-glue” required assembly, open box and fly in few seconds.

5- Built-in Gyro make the Dart wing fly super stable, and easy to control.

6- Spacious equipment bay for more FPV gear.

7- With plastic cover to protect the fuselage bottom from landing scratch

8- With bump for “CG” mark under the main wing.

9- With "NACA" Air inlet and outlet for FPV gear cooling

PNP Version include:

*PNP Dart Sweep forward wing with pre-installed motor / ESC / servos

(FPV Camera / Battery / radio controller are not included)
