ZOHD Dart 250g FPV Plane ZOHD Dart 250g FPV Plane

ZOHD Dart 250g FPV Plane

Based on the great reputation of the Dart Wing family and the invaluable info gathered from top world-wide FPV pilots, we were able to develop new techniques, and after tons of tests and refinements, we are finally bringing you the finest sub-250 wing in the market: The ZOHD Dart 250G.
Using our default configuration and the recommended FPV gear, it is 100% under 250 grams. To the untrained eye, she will look like a harmless toy but, this is a super capable FPV wing that will even let you do long range like the bigger brothers.

Being so light, it’s a blessing for beginners since they will find that it is really hard to break it. Also, coupled with our NEW Kopilot Lite and the VC400 camera, you will get a ready to go FPV system, solder and hassle free.

Now you can enjoy more than 30 minutes FPV action (with a 18650 2S1P 3500mAh) or a super thrilling proximity mission (on 3S setup), everything under 250 grams. Since the wingspan is only 570mm, you don’t even need to think about the portability, this thing is bicycle-ready!

High-end sub 250 grams FPV Wing

With increasing regulations all over the world targeting a most frequently misunderstood hobby, we saw the necessity of answering to that call. We can’t change the world, but we can definitely make it easier for you to adapt to the new challenges. For that reason Dart 250G will give you an extremely HIGH END set of features and at the same time, the best portability and peace of mind, staying under 250 grams. Get your wings back, fly her ANYWHERE, ANYTIME!

AUW is less than 250g, ideal to comply with Sub250g regulations
Durable EPP material, built-in CF spar for enhancement, crash resistant
Being light-weight will be safe to fly anywhere, anytime. You’re avoiding the hassle of an FPV registration

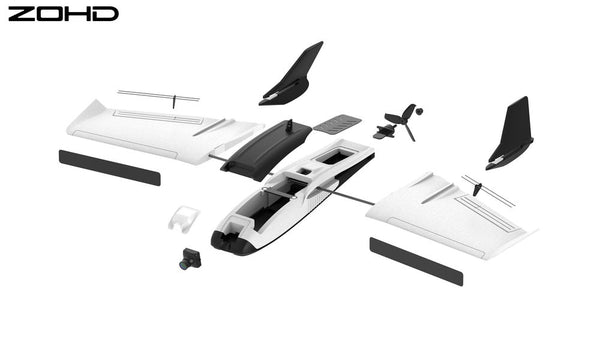

Glue-free assembly, the main wing and tails come with pre-applied 3M adhesive, just peel it off and install them

Large battery bay for extended flight time
Nose camera bay compatible with all FPV and AIO cameras in the market
Teflon cover for the fuselage bottom, super durable, protecting the fuselage bottom from scratches
Servo arms are well protected by an EPP hump
Built-in CF rod in the ailerons will give precision and sharp action to your inputs
Dedicated equipment bay for Flight Controller and GPS
Main wing leading edge cover for those unexpected impacts
Textured areas on both side of the fuselage, for more secure hand launch grip
Optimized air-cooling design will keep your gear safe from overheating

Item Name: Dart 250G

Material: High-Quality EPP

Wingspan: 570mm (22.44'')

Length: 379mm (14.92in'')

OPTION A (2S Version)

Motor: 1406-2600KV

ESC: 30A w/5V 2A BEC Servos: 9g

Propeller: 2 blade 5x5

Recommended Battery: Lipo 2S 900-1500mAh (*)

Li-Ion 18650 2S1P 3500mAh (*)

 OPTION B (3S Version)

Motor: 1406-2600KV

ESC: 30A w/5V 2A BEC

Servos: 9g

Propeller: 3 blade 3x5x3

Recommended Battery: Lipo 3S 800-1500mAh (*)

 (*) Batteries are not included.
