$29.99
Specifications X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make...
Specifications X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 14 In Stock
Motor
Specifications

X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.

Stainless steel solid shaft
The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.

6061-T6 Aviation aluminum alloy
Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.

Imported NMB bearings
X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.

Hand wound
The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.

[TABS]OVERVIEW

KV900
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Shaft Diameter 4mm
No.of Stator Slots 12 Body Length    (Without Shaft) 36mm
No.of Rotor Poles 14 Body Length 54mm
Motor Kv 900 Max Lipo Cell 3-4S
No-load current 0.7A/10V ESC 40A
Motor Resistance 52mΩ Recommended Prop(inch) APC13*6.5/APC13*8/APC11*8/APC11*5.5/APC11*7
Max Continuous Current 40A/30s Weight for aerobatics airplane 1200g-1400g (3S APC13*6.5\APC13*8) (4S APC11*5.5\APC11*7\APC11*8)
Max Continuous Power 570W Weight for 3D airplane 800g-1000g (3S APC13*6.5\APC13*8)
Weight

108g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC13x6.5 11.1 5 500 55.5 9.009009009 47°
8.7 750 96.57 7.766387077
13 1000 144.3 6.93000693
18.3 1250 203.13 6.153694678
24.2 1500 268.62 5.584096493
27.6 1650 306.36 5.385820603
29.5 1750 327.45 5.344327378
APC13x8 11.1 5.3 500 58.83 8.499065103 50°
9.2 750 102.12 7.344300823
14.2 1000 157.62 6.344372542
19.3 1250 214.23 5.834850394
25.9 1500 287.49 5.217572785
32.5 1770 360.75 4.906444906
APC11x7 14.8 4.7 500 69.56 7.188039103 61°
8.1 750 119.88 6.256256256
12.4 1000 183.52 5.448997384
17 1250 251.6 4.968203498
22.4 1500 331.52 4.5246139
28.2 1750 417.36 4.19302281
34.4 2020 509.12 3.967630421
APC11x5.5 14.8 4.5 500 66.6 7.507507508 48°
7.9 750 116.92 6.414642491
11.7 1000 173.16 5.775005775
15.8 1250 233.84 5.345535409
20.6 1500 304.88 4.919968512
25.7 1750 380.36 4.600904406
29.3 1950 433.64 4.496817637
APC11x8 14.8 5 500 74 6.756756757 59°
8.7 750 128.76 5.824790308
13 1000 192.4 5.197505198
18.3 1250 270.84 4.615271009
23.7 1500 350.76 4.276428327
30.6 1750 452.88 3.864158276
37.5 2020 555 3.63963964



KV1000
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Shaft Diameter 4mm
No.of Stator Slots 12 Body Length    (Without Shaft) 36mm
No.of Rotor Poles 14 Body Length 54mm
Motor Kv 1100 Max Lipo Cell 3-4S
No-load current 1.5A/10V ESC 50A
Motor Resistance 32mΩ Recommended Prop(inch) APC11*5.5/APC11*7/APC10*5/APC9*6
Max Continuous Current 40A/30s Weight for aerobatics airplane 1200g-1400g (3S APC11*5.5\11*7) (4S APC9060)
Max Continuous Power 600W Weight for 3D airplane 800g-1000g (3S APC11*5.5\11*7\11*8)
Weight 108g Weight for glider 1500g (3S APC11*5.5)



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC11x5.5 11.1 6 500 66.6 7.507507508 48°
10.3 750 114.33 6.559958016
15 1000 166.5 6.006006006
20.5 1250 227.55 5.493298176
26.5 1500 294.15 5.099439062
33.1 1760 367.41 4.790288778
APC11x7 11.1 6 500 66.6 7.507507508 52°
10.8 750 119.88 6.256256256
16.3 1000 180.93 5.526999392
21.8 1250 241.98 5.165716175
29 1500 321.9 4.659832246
38.5 1860 427.35 4.352404352
APC1050 11.1 6.3 500 69.93 7.15000715 59°
10.9 750 120.99 6.19885941
16 1000 177.6 5.630630631
21.8 1250 241.98 5.165716175
25.8 1410 286.38 4.923528179
14.8 4.9 500 72.52 6.894649752
8.5 750 125.8 5.961844197
13 1000 192.4 5.197505198
17.8 1250 263.44 4.744913453
22.5 1500 333 4.504504505
28.3 1750 418.84 4.178206475
34.9 2000 516.52 3.872066909
40.3 2230 596.44 3.738850513
APC9060 14.8 5.6 500 82.88 6.032818533 48°
9.8 750 145.04 5.170987314
14.9 1000 220.52 4.534736078
20.1 1250 297.48 4.201963157
26.7 1500 395.16 3.795930762
32.8 1750 485.44 3.604976928
38.5 1910 569.8 3.352053352



KV1250
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Shaft Diameter 4mm
No.of Stator Slots 12 Body Length    (Without Shaft) 36mm
No.of Rotor Poles 14 Body Length 54mm
Motor Kv 1250 Max Lipo Cell 3-4S
No-load current 2.1A/10V ESC 70A
Motor Resistance 25mΩ Recommended Prop(inch) APC9060/APC8060
Max Continuous Current 55A/15s Weight for aerobatics airplane 1000g-1300g (4S APC9060\APC8060)
Max Continuous Power 880W
Weight

108g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC8060 14.8 8 500 118.4 4.222972973 60°
13.9 750 205.72 3.645732063
21.2 1000 313.76 3.187149414
29.2 1250 432.16 2.892447242
39.3 1500 581.64 2.578914793
49.7 1770 735.56 2.406329871
APC9060 6.4 500 94.72 5.278716216 72°
11 750 162.8 4.606879607
16.7 1000 247.16 4.04596213
22.7 1250 335.96 3.720681033
28.9 1500 427.72 3.506967175
36.3 1750 537.24 3.257389621
45.8 2000 677.84 2.950548802
59.8 2360 885.04 2.666546145



[/TABS]

Specifications

X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.

Stainless steel solid shaft
The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.

6061-T6 Aviation aluminum alloy
Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.

Imported NMB bearings
X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.

Hand wound
The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.

[TABS]OVERVIEW

KV900
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Shaft Diameter 4mm
No.of Stator Slots 12 Body Length    (Without Shaft) 36mm
No.of Rotor Poles 14 Body Length 54mm
Motor Kv 900 Max Lipo Cell 3-4S
No-load current 0.7A/10V ESC 40A
Motor Resistance 52mΩ Recommended Prop(inch) APC13*6.5/APC13*8/APC11*8/APC11*5.5/APC11*7
Max Continuous Current 40A/30s Weight for aerobatics airplane 1200g-1400g (3S APC13*6.5\APC13*8) (4S APC11*5.5\APC11*7\APC11*8)
Max Continuous Power 570W Weight for 3D airplane 800g-1000g (3S APC13*6.5\APC13*8)
Weight

108g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC13x6.5 11.1 5 500 55.5 9.009009009 47°
8.7 750 96.57 7.766387077
13 1000 144.3 6.93000693
18.3 1250 203.13 6.153694678
24.2 1500 268.62 5.584096493
27.6 1650 306.36 5.385820603
29.5 1750 327.45 5.344327378
APC13x8 11.1 5.3 500 58.83 8.499065103 50°
9.2 750 102.12 7.344300823
14.2 1000 157.62 6.344372542
19.3 1250 214.23 5.834850394
25.9 1500 287.49 5.217572785
32.5 1770 360.75 4.906444906
APC11x7 14.8 4.7 500 69.56 7.188039103 61°
8.1 750 119.88 6.256256256
12.4 1000 183.52 5.448997384
17 1250 251.6 4.968203498
22.4 1500 331.52 4.5246139
28.2 1750 417.36 4.19302281
34.4 2020 509.12 3.967630421
APC11x5.5 14.8 4.5 500 66.6 7.507507508 48°
7.9 750 116.92 6.414642491
11.7 1000 173.16 5.775005775
15.8 1250 233.84 5.345535409
20.6 1500 304.88 4.919968512
25.7 1750 380.36 4.600904406
29.3 1950 433.64 4.496817637
APC11x8 14.8 5 500 74 6.756756757 59°
8.7 750 128.76 5.824790308
13 1000 192.4 5.197505198
18.3 1250 270.84 4.615271009
23.7 1500 350.76 4.276428327
30.6 1750 452.88 3.864158276
37.5 2020 555 3.63963964



KV1000
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Shaft Diameter 4mm
No.of Stator Slots 12 Body Length    (Without Shaft) 36mm
No.of Rotor Poles 14 Body Length 54mm
Motor Kv 1100 Max Lipo Cell 3-4S
No-load current 1.5A/10V ESC 50A
Motor Resistance 32mΩ Recommended Prop(inch) APC11*5.5/APC11*7/APC10*5/APC9*6
Max Continuous Current 40A/30s Weight for aerobatics airplane 1200g-1400g (3S APC11*5.5\11*7) (4S APC9060)
Max Continuous Power 600W Weight for 3D airplane 800g-1000g (3S APC11*5.5\11*7\11*8)
Weight 108g Weight for glider 1500g (3S APC11*5.5)



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC11x5.5 11.1 6 500 66.6 7.507507508 48°
10.3 750 114.33 6.559958016
15 1000 166.5 6.006006006
20.5 1250 227.55 5.493298176
26.5 1500 294.15 5.099439062
33.1 1760 367.41 4.790288778
APC11x7 11.1 6 500 66.6 7.507507508 52°
10.8 750 119.88 6.256256256
16.3 1000 180.93 5.526999392
21.8 1250 241.98 5.165716175
29 1500 321.9 4.659832246
38.5 1860 427.35 4.352404352
APC1050 11.1 6.3 500 69.93 7.15000715 59°
10.9 750 120.99 6.19885941
16 1000 177.6 5.630630631
21.8 1250 241.98 5.165716175
25.8 1410 286.38 4.923528179
14.8 4.9 500 72.52 6.894649752
8.5 750 125.8 5.961844197
13 1000 192.4 5.197505198
17.8 1250 263.44 4.744913453
22.5 1500 333 4.504504505
28.3 1750 418.84 4.178206475
34.9 2000 516.52 3.872066909
40.3 2230 596.44 3.738850513
APC9060 14.8 5.6 500 82.88 6.032818533 48°
9.8 750 145.04 5.170987314
14.9 1000 220.52 4.534736078
20.1 1250 297.48 4.201963157
26.7 1500 395.16 3.795930762
32.8 1750 485.44 3.604976928
38.5 1910 569.8 3.352053352



KV1250
Stator Diameter 28mm Rotor Diameter 35mm
Stator Thickness 14mm Shaft Diameter 4mm
No.of Stator Slots 12 Body Length    (Without Shaft) 36mm
No.of Rotor Poles 14 Body Length 54mm
Motor Kv 1250 Max Lipo Cell 3-4S
No-load current 2.1A/10V ESC 70A
Motor Resistance 25mΩ Recommended Prop(inch) APC9060/APC8060
Max Continuous Current 55A/15s Weight for aerobatics airplane 1000g-1300g (4S APC9060\APC8060)
Max Continuous Power 880W
Weight

108g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC8060 14.8 8 500 118.4 4.222972973 60°
13.9 750 205.72 3.645732063
21.2 1000 313.76 3.187149414
29.2 1250 432.16 2.892447242
39.3 1500 581.64 2.578914793
49.7 1770 735.56 2.406329871
APC9060 6.4 500 94.72 5.278716216 72°
11 750 162.8 4.606879607
16.7 1000 247.16 4.04596213
22.7 1250 335.96 3.720681033
28.9 1500 427.72 3.506967175
36.3 1750 537.24 3.257389621
45.8 2000 677.84 2.950548802
59.8 2360 885.04 2.666546145



[/TABS]

Orders placed on our website will be shipped from our warehouse in Columbus, Ohio. Most orders will be shipped the same day or next working day. Please contact us for special shipping requirement.
We do not accept orders to be delivered to forwarding companies, unless the address and buyer is confirmed and verified via PayPal payment. Any this kind of orders paid by credit card or unverified PayPal account will be cancelled and refunded without notification.
Shipping charge is calculated according to weight, dim weight, and distance.
Presently we can only ship order by US postal office. Other carrier methods will be available in the near future.
We do not ship orders to shipping forwarding companies. An order that shows this kind of address will be cancelled without notification to a customer.
Orders placed on our website will be shipped from our warehouse in Columbus, Ohio. Most orders will be shipped the same day or next working day. Please contact us for special shipping requirement.
We do not accept orders to be delivered to forwarding companies, unless the address and buyer is confirmed and verified via PayPal payment. Any this kind of orders paid by credit card or unverified PayPal account will be cancelled and refunded without notification.
Shipping charge is calculated according to weight, dim weight, and distance.
Presently we can only ship order by US postal office. Other carrier methods will be available in the near future.
We do not ship orders to shipping forwarding companies. An order that shows this kind of address will be cancelled without notification to a customer.

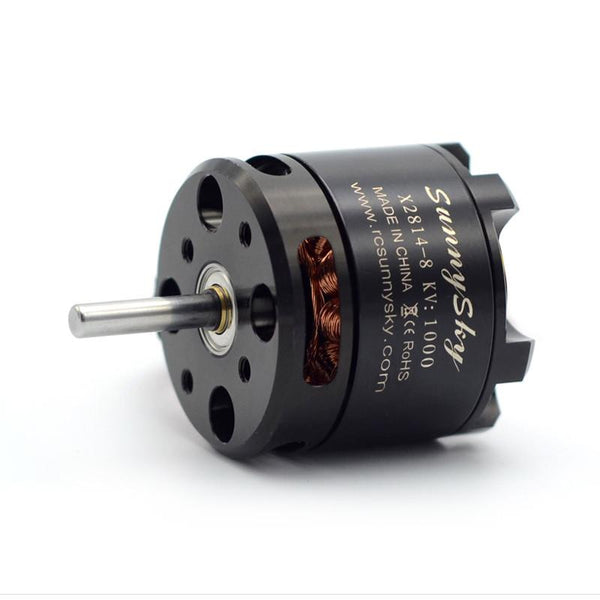

SunnySky X2814 Brushless Motors SunnySky X2814 Brushless Motors
