$699.99

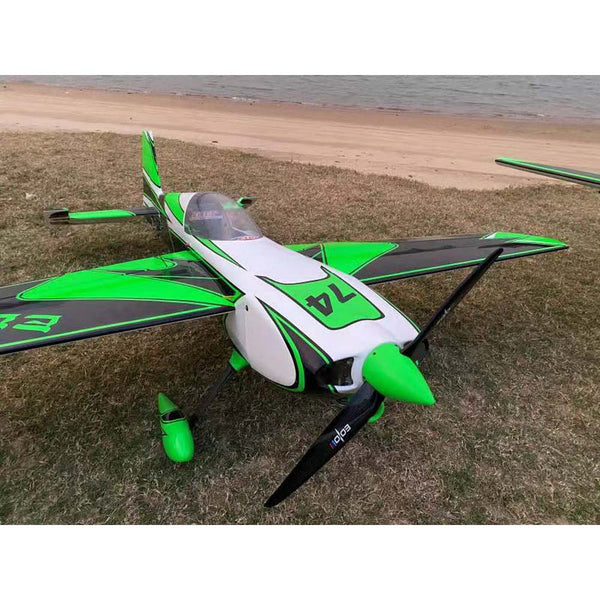

Parameter Specification Item： OMPHOBBY 74” EDGE 540 Color: Green▢ Red▢ Yellow▢ Orange▢ WingSpan: 1880mm(74in) Full Length: 1800mm(71in) Flight Weight: 4.8~5.3KG The Center of Gravity (CG)： Approx.120-135mm Wing Area: 70.51g/d㎡ Wing Load: ...
Parameter Specification Item： OMPHOBBY 74” EDGE 540 Color: Green▢ Red▢ Yellow▢ Orange▢ WingSpan: 1880mm(74in) Full Length: 1800mm(71in) Flight Weight: 4.8~5.3KG The Center of Gravity (CG)： Approx.120-135mm Wing Area: 70.51g/d㎡ Wing Load: ...
Availability:
17 In Stock
Balsa Airplane
Parameter Specification
|
Item： |
OMPHOBBY 74” EDGE 540 |
Color: |
Green▢ Red▢ Yellow▢ Orange▢ |
|
WingSpan: |
1880mm(74in) |
Full Length: |
1800mm(71in) |
|
Flight Weight: |
4.8~5.3KG |
The Center of Gravity (CG)： |
Approx.120-135mm |
|
Wing Area: |
70.51g/d㎡ |
Wing Load: |
68~75.1g/d㎡ |
|
Wing Angle of Incidence: |
0° |
Motor Thrust Angles: |
Down 0° & Right 2° |
|
Pack Dimension： |
144*56*30(L*H*W)cm |
Gross Weight: |
15.3kg |
|
Servo: 20~35 Kg*5 (Aileron *2, Elevator*1 Rudder*1 Throttle*1), Servo Arm: 1.5" 25T Servo Arm |
|||
|
Gas Power (Recommended): 30-35CC, Propeller: 19x8/19x9/19x10/20x8/20x9 |
|||
|
Electric Power (Recommended): Option 1: Motor: Sunnysky 7015, ESC: X120A, Propeller:20x8/20x9, Lipo 8s 4000mah/12s 3300mah 3700mah 4000mah Option 2: Motor: Sunnysky 6220, ESC: X120A, Propeller:20x8/20x9 ; Lipo 6S 5000mah /8s 3300mah 3700mah 4000mah
|
|||
Recommended Settings of Dual Rates and Exponentials of Control Surfaces
| Rate | EXP | Direction |
Throw |
|
| Aileron |
High |
35~40% |
Up |
36~39° |
| Low |
40~45% |
Down |
20~26° |
|
| Elevator |
High |
38~45% |
Up |
45~53° |
| Low |
45~55% |
Down |
30~35° |
|
| Rudder |
High |
38~45% |
Up |
42~50° |
| Low |
45~55% |
Down |
28~32° |
Flat rate shipping within the US is $50.00
Recommended Components:
Motor SunnySky X7015 V3 SS-XV3-X7015-270
KV205 on 12s Battery
KV270 on 8s Battery
Propellers
Falcon 20x8 and 20x9
ESC
ZTW-Gecko-120A-HV
ZTW-Mantis-125A
ZTW-Mantis-150A
ZTW-Mantis-120A or comparable
Servos SKU=
KST-DS2509MG or comparable
Parameter Specification
|
Item： |
OMPHOBBY 74” EDGE 540 |
Color: |
Green▢ Red▢ Yellow▢ Orange▢ |
|
WingSpan: |
1880mm(74in) |
Full Length: |
1800mm(71in) |
|
Flight Weight: |
4.8~5.3KG |
The Center of Gravity (CG)： |
Approx.120-135mm |
|
Wing Area: |
70.51g/d㎡ |
Wing Load: |
68~75.1g/d㎡ |
|
Wing Angle of Incidence: |
0° |
Motor Thrust Angles: |
Down 0° & Right 2° |
|
Pack Dimension： |
144*56*30(L*H*W)cm |
Gross Weight: |
15.3kg |
|
Servo: 20~35 Kg*5 (Aileron *2, Elevator*1 Rudder*1 Throttle*1), Servo Arm: 1.5" 25T Servo Arm |
|||
|
Gas Power (Recommended): 30-35CC, Propeller: 19x8/19x9/19x10/20x8/20x9 |
|||
|
Electric Power (Recommended): Option 1: Motor: Sunnysky 7015, ESC: X120A, Propeller:20x8/20x9, Lipo 8s 4000mah/12s 3300mah 3700mah 4000mah Option 2: Motor: Sunnysky 6220, ESC: X120A, Propeller:20x8/20x9 ; Lipo 6S 5000mah /8s 3300mah 3700mah 4000mah
|
|||
Recommended Settings of Dual Rates and Exponentials of Control Surfaces
| Rate | EXP | Direction |
Throw |
|
| Aileron |
High |
35~40% |
Up |
36~39° |
| Low |
40~45% |
Down |
20~26° |
|
| Elevator |
High |
38~45% |
Up |
45~53° |
| Low |
45~55% |
Down |
30~35° |
|
| Rudder |
High |
38~45% |
Up |
42~50° |
| Low |
45~55% |
Down |
28~32° |
Flat rate shipping within the US is $50.00
Recommended Components:
Motor SunnySky X7015 V3 SS-XV3-X7015-270
KV205 on 12s Battery
KV270 on 8s Battery
Propellers
Falcon 20x8 and 20x9
ESC
ZTW-Gecko-120A-HV
ZTW-Mantis-125A
ZTW-Mantis-150A
ZTW-Mantis-120A or comparable
Servos SKU=
KST-DS2509MG or comparable
