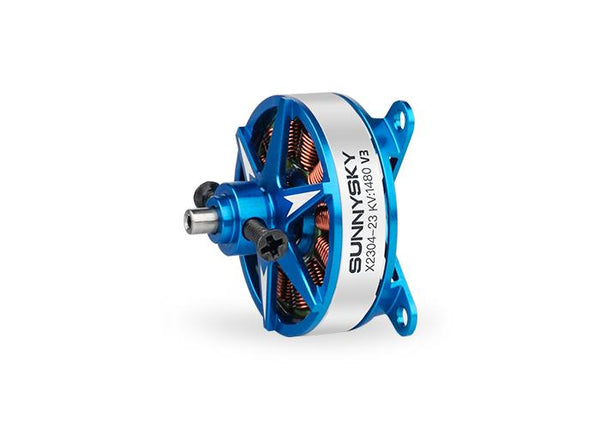

SunnySky X Series V3 X2304 V3 Brushless Motors SunnySky X Series V3 X2304 V3 Brushless Motors

$16.99
[TABS]OVERVIEW KV1400 No.of Stator Slots 12 Rotor Diameter 28mm No.of Rotor Poles 14 Shaft Diameter 3mm Motor Kv 1400 Body Length(Without Shaft) 19.1mm No-load current 0.35A/10V Body Length 22.2mm Motor...
[TABS]OVERVIEW KV1400 No.of Stator Slots 12 Rotor Diameter 28mm No.of Rotor Poles 14 Shaft Diameter 3mm Motor Kv 1400 Body Length(Without Shaft) 19.1mm No-load current 0.35A/10V Body Length 22.2mm Motor...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 67 In Stock
Motor
[TABS]OVERVIEW

KV1400
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1400 Body Length(Without Shaft) 19.1mm
No-load current 0.35A/10V Body Length 22.2mm
Motor Resistance 200mΩ Max Lipo Cell 2-3S
Max Continuous Current 14A/30s ESC 10-15A
Max Continuous Power 120W ESC GWS8043/GWS9047/GWS9050
Weight 20.2g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8060 7.4 0.4 50 3.0 16.89 2655 70℃ 10min
1.1 100 8.1 12.29 3677
1.6 125 11.8 11.26 3986
2.2 150 16.3 10.67 4470
2.8 175 20.7 9.46 4670
3.5 200 25.9 9.01 5020
5 250 37.0 8.04 5533
6.9 300 51.1 6.99 6151
9 348 66.6 6.37 6604
8.4 0.3 50 2.5 19.84 2675
1 100 8.4 13.23 3700
1.4 125 11.8 11.45 4000
1.9 150 16.0 10.50 4480
2.5 175 21.0 9.92 4740
3.1 200 26.0 8.82 5049
4.4 250 37.0 7.83 5626
6 300 50.4 7.14 6167
8.2 350 68.9 6.41 6644
10.5 412 88.2 5.88 7000
GWS8043 7.4 0.4 50 3.0 16.93 2840 65℃ 10min
1.1 100 8.1 13.51 3986
1.4 125 10.4 12.07 4425
1.9 150 14.1 10.67 4810
2.4 175 17.8 9.85 5168
3 200 22.2 8.72 5550
4.1 250 30.3 7.68 6056
5.7 300 42.2 6.76 6658
7.5 363 55.5 6.14 7264
8.4 0.3 50 2.5 19.89 2850
0.9 100 7.6 6.63 3990
1.3 125 10.9 9.92 4450
1.8 150 15.1 8.75 4860
2.1 175 17.6 8.50 5200
2.6 200 21.8 8.01 5529
3.8 250 31.9 6.11 6162
5.2 300 43.7 5.62 6719
6.6 350 55.4 5.25 7175
8.7 412 73.1 4.76 7870
GWS9050 7.4 0.4 50 3.0 22.58 2500 100℃ 5min
1 100 7.4 13.51 3455
1.4 125 10.4 12.07 3818
1.8 150 13.3 11.26 4118
2.3 175 17.0 9.85 4463
2.9 200 21.5 9.01 4644
4 250 29.6 8.04 5285
5.4 300 40.0 7.37 5722
7 350 51.8 6.66 6166
8.9 412 65.9 6.10 6579
8.4 0.3 50 2.5 19.89 2498
0.9 100 7.6 13.23 3433
1.2 125 10.1 12.40 3744
1.6 150 13.4 11.16 4175
2.1 175 17.6 9.92 4395
2.5 200 21.0 9.52 4750
3.6 250 30.2 8.27 5252
4.7 300 39.5 7.60 5690
6.1 350 51.2 6.83 6133
7.9 400 66.4 6.03 6549
10.7 450 89.9 5.01 7245
GWS1047 7.4 0.3 50 2.2 22.58 1863 120℃ 3min15s
0.9 100 6.7 15.02 2526
1.4 125 10.4 12.99 2812
1.8 150 13.3 11.26 3055
2.4 175 17.8 9.85 3286
3 200 22.2 9.01 3464
4.6 250 34.0 7.34 3863
6.5 300 48.1 6.44 4234
8.7 350 64.4 5.50 4516
12.3 434 91.0 4.74 4950
8.4 0.2 50 1.7 29.84 1900
0.9 100 7.6 14.88 2526
1.2 125 10.1 13.53 2779
1.7 150 14.3 11.16 3040
2.1 175 17.6 10.42 3270
2.6 200 21.8 9.52 3500
4.2 250 35.3 7.44 3863
5.85 300 49.1 6.27 4300
8 350 67.2 5.21 4482
10.5 400 88.2 4.54 4783
14 480 117.6 4.00 5290



KV1480
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1480 Body Length(Without Shaft) 19.1mm
No-load current 0.4A/10V Body Length 22.2mm
Motor Resistance 190mΩ Max Lipo Cell 2-3S
Max Continuous Current 15A/30s ESC 12-15A
Max Continuous Power 130W Recommended Prop(inch) GWS8043/GWS8060/GWS9047/GWS9050
Weight 20.2g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8060 7.4 0.3 50 2.22 22.52 2685   61℃ 5min
1.2 100 8.88 11.26 3622
1.6 125 11.84 10.56 4084
2.2 150 16.28 9.21 4428
2.7 175 19.98 8.76 4789
3.5 200 25.90 7.72 5161
5.1 250 37.74 6.62 5697
7 300 51.80 5.79 6176
9.3 356 68.82 5.17 6700
8.4 0.3 50 2.52 19.84 2571
1 100 8.40 11.90 3665
1.4 125 11.76 10.63 4080
1.9 150 15.96 9.40 4412
2.4 175 20.16 8.68 4800
3.2 200 26.88 7.44 5123
4.7 250 39.48 6.33 5728
6.3 300 52.92 5.67 6280
8.2 350 68.88 5.08 6748
11.1 420 93.24 4.50 7300
GWS8043 7.4 0.4 50 2.96 16.89 2860 58℃ 5min
1.05 100 7.77 12.87 3870
1.5 125 11.10 11.26 4410
1.9 150 14.06 10.67 4770
2.45 175 18.13 9.65 5140
3.05 200 22.57 8.86 5500
4.2 250 31.08 8.04 6126
5.8 300 42.92 6.99 6670
7.8 365 57.72 6.32 7327
8.4 0.4 50 3.36 14.88 2860
0.9 100 7.56 13.23 3870
1.3 125 10.92 11.45 4410
1.8 150 15.12 9.92 4770
2.2 175 18.48 9.47 5130
2.6 200 21.84 9.16 5500
3.8 250 31.92 7.83 6100
5.3 300 44.52 6.74 6700
6.8 350 57.12 6.13 7150
8.4 400 70.56 5.67 7600
9.7 435 81.48 5.34 7915
GWS9047 7.4 0.4 50 2.96 16.93 2232 70℃ 5min
0.9 100 6.66 15.02 3100
1.3 125 9.62 12.99 3470
1.8 150 13.32 11.26 3759
2.3 175 17.02 10.28 4042
3 200 22.20 9.01 4424
4.3 250 31.82 7.86 4884
6 300 44.40 6.76 5365
7.8 350 57.72 6.06 5739
10.3 418 76.22 5.48 6279
8.4 0.3 50 2.52 19.89 2254
0.8 100 6.72 14.88 3107
1.1 125 9.24 13.53 3503
1.6 150 13.44 11.16 3797
2 175 16.80 10.42 4110
2.5 200 21.00 9.52 4384
3.8 250 31.92 7.83 4817
5.2 300 43.68 6.87 5273
6.7 350 56.28 6.22 5705
8.7 400 73.08 5.47 6230
12.3 495 103.32 4.79 6347
GWS9050 7.4 0.3 50 2.22 22.58 2676 67℃ 5min
0.9 100 6.66 15.02 3444
1.3 125 9.62 12.99 3890
1.7 150 12.58 11.92 4203
2.3 175 17.02 10.28 4519
2.9 200 21.46 9.32 4814
4.1 250 30.34 8.24 5460
5.4 300 39.96 7.51 5806
7 350 51.80 6.76 6222
9.2 420 68.08 6.17 6670
8.4 0.3 50 2.52 19.89 2600
0.8 100 6.72 14.88 3506
1.1 125 9.24 13.53 3926
1.6 150 13.44 11.16 4090
2 175 16.80 10.42 4525
2.5 200 21.00 9.52 4766
3.6 250 30.24 8.27 5300
4.8 300 40.32 7.44 5750
6.2 350 52.08 6.72 6190
10.7 462 89.88 5.14 7140
GWS1047 7.4 0.3 50 2.22 22.58 1865 95℃ 1min
0.8 100 5.92 16.89 2572
1.3 125 9.62 12.99 2900
1.8 150 13.32 11.26 3058
2.4 175 17.76 9.85 3337
3.2 200 23.68 8.45 3534
4.9 250 36.26 6.89 3920
6.9 300 51.06 5.88 4224
9.4 350 69.56 5.03 4566
13.1 440 96.94 4.54 4720
8.4 0.2 50 1.68 29.84 2000
0.8 100 6.72 14.88 2620
1.1 125 9.24 13.53 2805
1.6 150 13.44 11.16 3086
2.2 175 18.48 9.47 3300
2.7 200 22.68 8.82 3557
4.3 250 36.12 6.92 3913
6.2 300 52.08 5.76 4248
8.7 350 73.08 4.79 4522
11.3 400 94.92 4.21 4840
14.6 500 122.64 4.08 5073



KV1800
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1800 Body Length(Without Shaft) 19.1mm
No-load current 0.5A/10V Body Length 22.2mm
Motor Resistance 113mΩ Max Lipo Cell 2-3S
Max Continuous Current 19A/30s ESC 15-20A
Max Continuous Power 160W ESC GWS8040/GWS8043/GWS9047/GWS9050/GWS8060
Weight 20.2g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8060 7.4 0.4 50 2.96 16.89 2640 82℃ 1min30s
1.2 100 8.88 11.26 3620
1.6 125 11.84 10.56 4080
2.3 150 17.02 8.81 4470
2.9 175 21.46 8.15 4750
3.7 200 27.38 7.30 5120
5.4 250 39.96 6.26 5650
7.4 300 54.76 5.48 6190
10.1 350 74.74 4.68 6670
15.5 450 114.70 3.92 7450
8.4 0.3 50 2.52 19.84 2650
1 100 8.40 11.90 3640
1.4 125 11.76 10.63 4100
1.9 150 15.96 9.40 4430
2.5 175 21.00 8.33 4780
3.1 200 26.04 7.68 5140
4.7 250 39.48 6.33 5670
6.6 300 55.44 5.41 6220
8.6 350 72.24 4.84 6680
11.4 400 95.76 4.18 7050
14.7 450 123.48 3.64 7450
18.5 500 155.40 3.22 7890
GWS8043 7.4 0.4 50 2.96 16.89 2859 85℃ 1min
1 100 7.40 13.51 3927
1.4 125 10.36 12.07 4379
1.9 150 14.06 10.67 4730
2.5 175 18.50 9.46 5200
3.1 200 22.94 8.72 5479
4.4 250 32.56 7.68 6145
5.9 300 43.66 6.87 6680
7.7 350 56.98 6.14 7080
9.7 400 71.78 5.57 7565
13.3 490 98.42 4.98 8254
8.4 0.4 50 3.36 14.88 2867
0.9 100 7.56 13.23 3930
1.3 125 10.92 11.45 4370
1.7 150 14.28 10.50 4730
2.2 175 18.48 9.47 5121
2.8 200 23.52 8.50 5490
3.9 250 32.76 7.63 4145
5.4 300 45.36 6.61 6675
7 350 58.80 5.95 7120
8.7 400 73.08 5.47 7645
10.6 450 89.04 5.05 8059
18.4 550 154.56 3.56 8751
GWS9047 7.4 0.3 50 2.22 22.52 2350 90℃ 40s
0.9 100 6.66 15.02 3120
1.3 125 9.62 12.99 3400
1.8 150 13.32 11.26 3720
2.4 175 17.76 9.85 4000
3 200 22.20 9.01 4300
4.4 250 32.56 7.68 4830
6 300 44.40 6.76 5350
7.9 350 58.46 5.99 5700
10.2 400 75.48 5.30 5970
12.6 450 93.24 4.83 6440
16.4 538 121.36 4.43 6900
8.4 0.3 50 2.52 19.84 2340
0.8 100 6.72 14.88 3090
1.1 125 9.24 13.53 3400
1.6 150 13.44 11.16 3720
2 175 16.80 10.42 3990
2.6 200 21.84 9.16 4280
3.7 250 31.08 8.04 4845
5.2 300 43.68 6.87 5290
6.9 350 57.96 6.04 5724
8.7 400 73.08 5.47 6020
11.1 450 93.24 4.83 6500
13.7 500 115.08 4.34 6810
19.2 628 161.28 3.89 7350
GWS9050 7.4 0.4 50 2.96 16.89 2510 93℃ 50s
1 100 7.40 13.51 3490
1.3 125 9.62 12.99 3760
1.8 150 13.32 11.26 4200
2.3 175 17.02 10.28 4500
2.9 200 21.46 9.32 4800
4.3 250 31.82 7.86 5300
5.8 300 42.92 6.99 5750
7.4 350 54.76 6.39 6160
9.5 400 70.30 5.69 6560
11.7 450 86.58 5.20 7000
15.4 540 113.96 4.74 7610
8.4 0.3 50 2.52 19.84 2520
0.8 100 6.72 14.88 3500
1.2 125 10.08 12.40 3780
1.6 150 13.44 11.16 4210
2.1 175 17.64 9.92 4500
2.6 200 21.84 9.16 4820
3.7 250 31.08 8.04 5330
5.1 300 42.84 7.00 5770
6.7 350 56.28 6.22 6150
8.3 400 69.72 5.74 6540
10.4 450 87.36 5.15 6980
12.8 500 107.52 4.65 7350
17.6 615 147.84 4.16 7900



-select: none;">

[/TABS]

[TABS]OVERVIEW

KV1400
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1400 Body Length(Without Shaft) 19.1mm
No-load current 0.35A/10V Body Length 22.2mm
Motor Resistance 200mΩ Max Lipo Cell 2-3S
Max Continuous Current 14A/30s ESC 10-15A
Max Continuous Power 120W ESC GWS8043/GWS9047/GWS9050
Weight 20.2g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8060 7.4 0.4 50 3.0 16.89 2655 70℃ 10min
1.1 100 8.1 12.29 3677
1.6 125 11.8 11.26 3986
2.2 150 16.3 10.67 4470
2.8 175 20.7 9.46 4670
3.5 200 25.9 9.01 5020
5 250 37.0 8.04 5533
6.9 300 51.1 6.99 6151
9 348 66.6 6.37 6604
8.4 0.3 50 2.5 19.84 2675
1 100 8.4 13.23 3700
1.4 125 11.8 11.45 4000
1.9 150 16.0 10.50 4480
2.5 175 21.0 9.92 4740
3.1 200 26.0 8.82 5049
4.4 250 37.0 7.83 5626
6 300 50.4 7.14 6167
8.2 350 68.9 6.41 6644
10.5 412 88.2 5.88 7000
GWS8043 7.4 0.4 50 3.0 16.93 2840 65℃ 10min
1.1 100 8.1 13.51 3986
1.4 125 10.4 12.07 4425
1.9 150 14.1 10.67 4810
2.4 175 17.8 9.85 5168
3 200 22.2 8.72 5550
4.1 250 30.3 7.68 6056
5.7 300 42.2 6.76 6658
7.5 363 55.5 6.14 7264
8.4 0.3 50 2.5 19.89 2850
0.9 100 7.6 6.63 3990
1.3 125 10.9 9.92 4450
1.8 150 15.1 8.75 4860
2.1 175 17.6 8.50 5200
2.6 200 21.8 8.01 5529
3.8 250 31.9 6.11 6162
5.2 300 43.7 5.62 6719
6.6 350 55.4 5.25 7175
8.7 412 73.1 4.76 7870
GWS9050 7.4 0.4 50 3.0 22.58 2500 100℃ 5min
1 100 7.4 13.51 3455
1.4 125 10.4 12.07 3818
1.8 150 13.3 11.26 4118
2.3 175 17.0 9.85 4463
2.9 200 21.5 9.01 4644
4 250 29.6 8.04 5285
5.4 300 40.0 7.37 5722
7 350 51.8 6.66 6166
8.9 412 65.9 6.10 6579
8.4 0.3 50 2.5 19.89 2498
0.9 100 7.6 13.23 3433
1.2 125 10.1 12.40 3744
1.6 150 13.4 11.16 4175
2.1 175 17.6 9.92 4395
2.5 200 21.0 9.52 4750
3.6 250 30.2 8.27 5252
4.7 300 39.5 7.60 5690
6.1 350 51.2 6.83 6133
7.9 400 66.4 6.03 6549
10.7 450 89.9 5.01 7245
GWS1047 7.4 0.3 50 2.2 22.58 1863 120℃ 3min15s
0.9 100 6.7 15.02 2526
1.4 125 10.4 12.99 2812
1.8 150 13.3 11.26 3055
2.4 175 17.8 9.85 3286
3 200 22.2 9.01 3464
4.6 250 34.0 7.34 3863
6.5 300 48.1 6.44 4234
8.7 350 64.4 5.50 4516
12.3 434 91.0 4.74 4950
8.4 0.2 50 1.7 29.84 1900
0.9 100 7.6 14.88 2526
1.2 125 10.1 13.53 2779
1.7 150 14.3 11.16 3040
2.1 175 17.6 10.42 3270
2.6 200 21.8 9.52 3500
4.2 250 35.3 7.44 3863
5.85 300 49.1 6.27 4300
8 350 67.2 5.21 4482
10.5 400 88.2 4.54 4783
14 480 117.6 4.00 5290



KV1480
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1480 Body Length(Without Shaft) 19.1mm
No-load current 0.4A/10V Body Length 22.2mm
Motor Resistance 190mΩ Max Lipo Cell 2-3S
Max Continuous Current 15A/30s ESC 12-15A
Max Continuous Power 130W Recommended Prop(inch) GWS8043/GWS8060/GWS9047/GWS9050
Weight 20.2g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8060 7.4 0.3 50 2.22 22.52 2685   61℃ 5min
1.2 100 8.88 11.26 3622
1.6 125 11.84 10.56 4084
2.2 150 16.28 9.21 4428
2.7 175 19.98 8.76 4789
3.5 200 25.90 7.72 5161
5.1 250 37.74 6.62 5697
7 300 51.80 5.79 6176
9.3 356 68.82 5.17 6700
8.4 0.3 50 2.52 19.84 2571
1 100 8.40 11.90 3665
1.4 125 11.76 10.63 4080
1.9 150 15.96 9.40 4412
2.4 175 20.16 8.68 4800
3.2 200 26.88 7.44 5123
4.7 250 39.48 6.33 5728
6.3 300 52.92 5.67 6280
8.2 350 68.88 5.08 6748
11.1 420 93.24 4.50 7300
GWS8043 7.4 0.4 50 2.96 16.89 2860 58℃ 5min
1.05 100 7.77 12.87 3870
1.5 125 11.10 11.26 4410
1.9 150 14.06 10.67 4770
2.45 175 18.13 9.65 5140
3.05 200 22.57 8.86 5500
4.2 250 31.08 8.04 6126
5.8 300 42.92 6.99 6670
7.8 365 57.72 6.32 7327
8.4 0.4 50 3.36 14.88 2860
0.9 100 7.56 13.23 3870
1.3 125 10.92 11.45 4410
1.8 150 15.12 9.92 4770
2.2 175 18.48 9.47 5130
2.6 200 21.84 9.16 5500
3.8 250 31.92 7.83 6100
5.3 300 44.52 6.74 6700
6.8 350 57.12 6.13 7150
8.4 400 70.56 5.67 7600
9.7 435 81.48 5.34 7915
GWS9047 7.4 0.4 50 2.96 16.93 2232 70℃ 5min
0.9 100 6.66 15.02 3100
1.3 125 9.62 12.99 3470
1.8 150 13.32 11.26 3759
2.3 175 17.02 10.28 4042
3 200 22.20 9.01 4424
4.3 250 31.82 7.86 4884
6 300 44.40 6.76 5365
7.8 350 57.72 6.06 5739
10.3 418 76.22 5.48 6279
8.4 0.3 50 2.52 19.89 2254
0.8 100 6.72 14.88 3107
1.1 125 9.24 13.53 3503
1.6 150 13.44 11.16 3797
2 175 16.80 10.42 4110
2.5 200 21.00 9.52 4384
3.8 250 31.92 7.83 4817
5.2 300 43.68 6.87 5273
6.7 350 56.28 6.22 5705
8.7 400 73.08 5.47 6230
12.3 495 103.32 4.79 6347
GWS9050 7.4 0.3 50 2.22 22.58 2676 67℃ 5min
0.9 100 6.66 15.02 3444
1.3 125 9.62 12.99 3890
1.7 150 12.58 11.92 4203
2.3 175 17.02 10.28 4519
2.9 200 21.46 9.32 4814
4.1 250 30.34 8.24 5460
5.4 300 39.96 7.51 5806
7 350 51.80 6.76 6222
9.2 420 68.08 6.17 6670
8.4 0.3 50 2.52 19.89 2600
0.8 100 6.72 14.88 3506
1.1 125 9.24 13.53 3926
1.6 150 13.44 11.16 4090
2 175 16.80 10.42 4525
2.5 200 21.00 9.52 4766
3.6 250 30.24 8.27 5300
4.8 300 40.32 7.44 5750
6.2 350 52.08 6.72 6190
10.7 462 89.88 5.14 7140
GWS1047 7.4 0.3 50 2.22 22.58 1865 95℃ 1min
0.8 100 5.92 16.89 2572
1.3 125 9.62 12.99 2900
1.8 150 13.32 11.26 3058
2.4 175 17.76 9.85 3337
3.2 200 23.68 8.45 3534
4.9 250 36.26 6.89 3920
6.9 300 51.06 5.88 4224
9.4 350 69.56 5.03 4566
13.1 440 96.94 4.54 4720
8.4 0.2 50 1.68 29.84 2000
0.8 100 6.72 14.88 2620
1.1 125 9.24 13.53 2805
1.6 150 13.44 11.16 3086
2.2 175 18.48 9.47 3300
2.7 200 22.68 8.82 3557
4.3 250 36.12 6.92 3913
6.2 300 52.08 5.76 4248
8.7 350 73.08 4.79 4522
11.3 400 94.92 4.21 4840
14.6 500 122.64 4.08 5073



KV1800
No.of Stator Slots 12 Rotor Diameter 28mm
No.of Rotor Poles 14 Shaft Diameter 3mm
Motor Kv 1800 Body Length(Without Shaft) 19.1mm
No-load current 0.5A/10V Body Length 22.2mm
Motor Resistance 113mΩ Max Lipo Cell 2-3S
Max Continuous Current 19A/30s ESC 15-20A
Max Continuous Power 160W ESC GWS8040/GWS8043/GWS9047/GWS9050/GWS8060
Weight 20.2g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GWS8060 7.4 0.4 50 2.96 16.89 2640 82℃ 1min30s
1.2 100 8.88 11.26 3620
1.6 125 11.84 10.56 4080
2.3 150 17.02 8.81 4470
2.9 175 21.46 8.15 4750
3.7 200 27.38 7.30 5120
5.4 250 39.96 6.26 5650
7.4 300 54.76 5.48 6190
10.1 350 74.74 4.68 6670
15.5 450 114.70 3.92 7450
8.4 0.3 50 2.52 19.84 2650
1 100 8.40 11.90 3640
1.4 125 11.76 10.63 4100
1.9 150 15.96 9.40 4430
2.5 175 21.00 8.33 4780
3.1 200 26.04 7.68 5140
4.7 250 39.48 6.33 5670
6.6 300 55.44 5.41 6220
8.6 350 72.24 4.84 6680
11.4 400 95.76 4.18 7050
14.7 450 123.48 3.64 7450
18.5 500 155.40 3.22 7890
GWS8043 7.4 0.4 50 2.96 16.89 2859 85℃ 1min
1 100 7.40 13.51 3927
1.4 125 10.36 12.07 4379
1.9 150 14.06 10.67 4730
2.5 175 18.50 9.46 5200
3.1 200 22.94 8.72 5479
4.4 250 32.56 7.68 6145
5.9 300 43.66 6.87 6680
7.7 350 56.98 6.14 7080
9.7 400 71.78 5.57 7565
13.3 490 98.42 4.98 8254
8.4 0.4 50 3.36 14.88 2867
0.9 100 7.56 13.23 3930
1.3 125 10.92 11.45 4370
1.7 150 14.28 10.50 4730
2.2 175 18.48 9.47 5121
2.8 200 23.52 8.50 5490
3.9 250 32.76 7.63 4145
5.4 300 45.36 6.61 6675
7 350 58.80 5.95 7120
8.7 400 73.08 5.47 7645
10.6 450 89.04 5.05 8059
18.4 550 154.56 3.56 8751
GWS9047 7.4 0.3 50 2.22 22.52 2350 90℃ 40s
0.9 100 6.66 15.02 3120
1.3 125 9.62 12.99 3400
1.8 150 13.32 11.26 3720
2.4 175 17.76 9.85 4000
3 200 22.20 9.01 4300
4.4 250 32.56 7.68 4830
6 300 44.40 6.76 5350
7.9 350 58.46 5.99 5700
10.2 400 75.48 5.30 5970
12.6 450 93.24 4.83 6440
16.4 538 121.36 4.43 6900
8.4 0.3 50 2.52 19.84 2340
0.8 100 6.72 14.88 3090
1.1 125 9.24 13.53 3400
1.6 150 13.44 11.16 3720
2 175 16.80 10.42 3990
2.6 200 21.84 9.16 4280
3.7 250 31.08 8.04 4845
5.2 300 43.68 6.87 5290
6.9 350 57.96 6.04 5724
8.7 400 73.08 5.47 6020
11.1 450 93.24 4.83 6500
13.7 500 115.08 4.34 6810
19.2 628 161.28 3.89 7350
GWS9050 7.4 0.4 50 2.96 16.89 2510 93℃ 50s
1 100 7.40 13.51 3490
1.3 125 9.62 12.99 3760
1.8 150 13.32 11.26 4200
2.3 175 17.02 10.28 4500
2.9 200 21.46 9.32 4800
4.3 250 31.82 7.86 5300
5.8 300 42.92 6.99 5750
7.4 350 54.76 6.39 6160
9.5 400 70.30 5.69 6560
11.7 450 86.58 5.20 7000
15.4 540 113.96 4.74 7610
8.4 0.3 50 2.52 19.84 2520
0.8 100 6.72 14.88 3500
1.2 125 10.08 12.40 3780
1.6 150 13.44 11.16 4210
2.1 175 17.64 9.92 4500
2.6 200 21.84 9.16 4820
3.7 250 31.08 8.04 5330
5.1 300 42.84 7.00 5770
6.7 350 56.28 6.22 6150
8.3 400 69.72 5.74 6540
10.4 450 87.36 5.15 6980
12.8 500 107.52 4.65 7350
17.6 615 147.84 4.16 7900



-select: none;">

[/TABS]

Orders placed on our website will be shipped from our warehouse in Columbus, Ohio. Most orders will be shipped the same day or next working day. Please contact us for special shipping requirement.
We do not accept orders to be delivered to forwarding companies, unless the address and buyer is confirmed and verified via PayPal payment. Any this kind of orders paid by credit card or unverified PayPal account will be cancelled and refunded without notification.
Shipping charge is calculated according to weight, dim weight, and distance.
Presently we can only ship order by US postal office. Other carrier methods will be available in the near future.
We do not ship orders to shipping forwarding companies. An order that shows this kind of address will be cancelled without notification to a customer.
Orders placed on our website will be shipped from our warehouse in Columbus, Ohio. Most orders will be shipped the same day or next working day. Please contact us for special shipping requirement.
We do not accept orders to be delivered to forwarding companies, unless the address and buyer is confirmed and verified via PayPal payment. Any this kind of orders paid by credit card or unverified PayPal account will be cancelled and refunded without notification.
Shipping charge is calculated according to weight, dim weight, and distance.
Presently we can only ship order by US postal office. Other carrier methods will be available in the near future.
We do not ship orders to shipping forwarding companies. An order that shows this kind of address will be cancelled without notification to a customer.

FAST SHIPPING
From Columbus Ohio

FREE SHIPPING
on most orders > $499

EMAIL & PHONE SUPPORT
Call us 9am-5pm EST

Bestseller Products Bestseller Products
175mm Main Blades for OMP M2 Explore and M2 V2 Helicopters - Ohio Model Products

175mm Main Blades for OMP M2 Explore and M2 V2 Helicopters 175mm Main Blades for OMP M2 Explore and M2 V2 Helicopters

$7.99
Ball Bearing Group for Blade Grip of OMP M2 Explore Version - Ohio Model Products

Ball Bearing Group for Blade Grip of OMP M2 Explore Version Ball Bearing Group for Blade Grip of OMP M2 Explore Version

$2.99
Canopy for OMP M2 Explore and M2 V2 Helicopters - Ohio Model Products

Canopy for OMP M2 Explore and M2 V2 Helicopters Canopy for OMP M2 Explore and M2 V2 Helicopters

$22.99
Canopy Retainer Pin Set for OMP M2 Explore Version - Ohio Model Products

Canopy Retainer Pin Set for OMP M2 Explore Version Canopy Retainer Pin Set for OMP M2 Explore Version

$3.99
Croduct Panel set for OMP M2 Explore Version - Ohio Model Products

Croduct Panel set for OMP M2 Explore Version Croduct Panel set for OMP M2 Explore Version

$1.99
DJI FPV Goggles V2

DJI FPV Goggles V2 DJI FPV Goggles V2

$429.99
Eolo 12x6.5 Electric Propeller - Ohio Model Products

Eolo 12x6.5 Electric Propeller Eolo 12x6.5 Electric Propeller

$2.45
First Step RC Heli 101 Ready to Fly Helicopter Kit Great for Beginners - Ohio Model Products

First Step RC Heli 101 Ready to Fly Helicopter Kit Great for Beginners First Step RC Heli 101 Ready to Fly Helicopter Kit Great for Beginners

$79.99
Flight Control Housing for OMP M2 Explore and M2 V2 Helicopters - Ohio Model Products

Flight Control Housing for OMP M2 Explore and M2 V2 Helicopters Flight Control Housing for OMP M2 Explore and M2 V2 Helicopters

$29.99

SunnySky X Series V3 X2304 V3 Brushless Motors SunnySky X Series V3 X2304 V3 Brushless Motors

Also Purchased

Just added to your wishlist:
My Wishlist
You've just added this product to the cart:
Go to cart page
