Availability: 181 In Stock
Motor
Specifications

series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.

Stainless steel solid shaft
The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.

6061-T6 Aviation aluminum alloy
Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.

Imported NMB bearings
X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.

Hand wound
The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.

[TABS]OVERVIEW

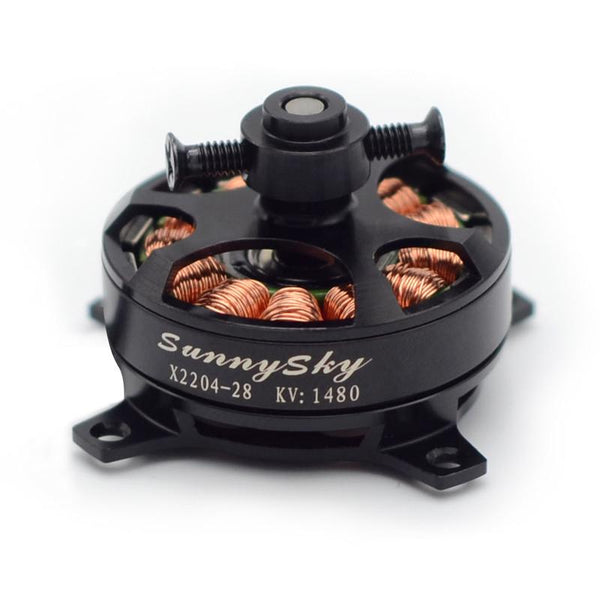

KV1480
Stator Diameter 22mm Rotor Diameter 27mm
Stator Thickness 4mm Shaft Diameter 3mm
No.of Stator Slots 12 Body Length (Without Shaft) 20.4mm
No.of Rotor Poles 14 Body Length 21.1mm
Motor Kv 1480 Max Lipo Cell 2-3S
No-load current 0.1A/10V ESC 10A
Motor Resistance 338mΩ Recommended Prop(inch) GWS8040/GWS8043/GWS9047/GWS9050
Max Continuous Current 11A/15s Weight for aerobatics airplane 180g (3S GWS8040\GWS8043)
Max Continuous Power 120W Weight for 3D airplane 135g (2S GWS9047\GWS9050)
Weight 19.6g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
GWS9047 7.4 1.3 100 9.62 10.3950104 40°
2.2 150 16.28 9.213759214
3.3 200 24.42 8.19000819
4.8 250 35.52 7.038288288
6.3 300 46.62 6.435006435
6.6 320 48.84 6.552006552
GWS9050 7.4 1.2 100 8.88 11.26126126 40°
2.1 150 15.54 9.652509653
3.2 200 23.68 8.445945946
4.5 250 33.3 7.507507508
6.1 310 45.14 6.867523261
GWS8040 7.4 1.2 100 8.88 11.26126126 42°
2.1 150 15.54 9.652509653
3 200 22.2 9.009009009
4.1 250 30.34 8.239947264
11.1 0.9 100 9.99 10.01001001
1.5 150 16.65 9.009009009
2.3 200 25.53 7.833920877
3.1 250 34.41 7.265329846
4.2 300 46.62 6.435006435
5.3 350 58.83 5.949345572
7.1 420 78.81 5.329272935
GWS8043 7.4 1.3 100 9.62 10.3950104 54°
2.2 150 16.28 9.213759214
3.3 200 24.42 8.19000819
5 265 37 7.162162162
11.1 0.9 100 9.99 10.01001001
1.5 150 16.65 9.009009009
2.4 200 26.64 7.507507508
3.3 250 36.63 6.825006825
4.3 300 47.73 6.285355123
5.6 350 62.16 5.630630631
7.2 400 79.92 5.005005005
8.4 450 93.24 4.826254826
GWS7035 11.1 1.1 100 12.21 8.19000819 37°
1.8 150 19.98 7.507507508
2.6 200 28.86 6.93000693
3.6 260 39.96 6.506506507



KV1800
Stator Diameter 22mm Rotor Diameter 27mm
Stator Thickness 4mm Shaft Diameter 3mm
No.of Stator Slots 12 Body Length (Without Shaft) 20.4mm
No.of Rotor Poles 14 Body Length 21.1mm
Motor Kv 1800 Max Lipo Cell 2-3S
No-load current 0.2A/10V ESC 12A
Motor Resistance 156mΩ Recommended Prop(inch) GWS8040/GWS8043/GWS9050/GWS9047
Max Continuous Current 12.5A/15s Weight for aerobatics airplane 200g (2S GWS8040\GWS8043)
Max Continuous Power 140W Weight for 3D airplane 155g (2S GWS9047\GWS9050\GWS8040\GWS8043)
Weight 19.6g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
GWS8040 7.4 1.4 100 10.36 9.652509653 65°
2.3 150 17.02 8.813160987
3.4 200 25.16 7.949125596
4.5 250 33.3 7.507507508
6 300 44.4 6.756756757
7.5 350 55.5 6.306306306
8.4 380 62.16 6.113256113
11.1 1 100 11.1 9.009009009
1.6 150 17.76 8.445945946
2.5 200 27.75 7.207207207
3.5 250 38.85 6.435006435
4.5 300 49.95 6.006006006
5.6 350 62.16 5.630630631
7 400 77.7 5.148005148
8.3 450 92.13 4.884402475
10 500 111 4.504504505
12 550 133.2 4.129129129
13 575 144.3 3.984753985
GWS9047 7.4 1.4 100 10.36 9.652509653 48°
2.5 150 18.5 8.108108108
3.6 200 26.64 7.507507508
5.1 250 37.74 6.62427133
6.4 300 47.36 6.334459459
8 350 59.2 5.912162162
10 410 74 5.540540541
GWS9050 7.4 1.3 100 9.62 10.3950104 55°
2.2 150 16.28 9.213759214
3.3 200 24.42 8.19000819
4.6 250 34.04 7.344300823
6.1 300 45.14 6.645990253
8.1 350 59.94 5.839172506
10.2 400 75.48 5.299417064
12 450 88.8 5.067567568
GWS8043 7.4 1.4 100 10.36 9.652509653 44°
2.5 150 18.5 8.108108108
3.7 200 27.38 7.304601899
5 250 37 6.756756757
6.5 300 48.1 6.237006237
8.1 350 59.94 5.839172506
10 410 74 5.540540541



[/TABS]
