[TABS]OVERVIEW

KV560

Stator Diameter	35mm	Rotor Diameter	42.5mm
Stator Thickness	20mm	Body Length	45mm
No.of Stator Slots	12	Max Lipo Cell	6S
No.of Rotor Poles	14	ESC	60-80A
Motor Kv	560	Recommended Prop(inch)	APC128/APC126/APC136.5/APC138/APC14*7
No-load current	1.1A/10V	Weight for aerobatics airplane	2500g (6S APC136.5\APC138)
Motor Resistance	23mΩ	Weight for 3D airplane	2200g (6S APC136.5\APC138)
Max Continuous Current	80A/30s
Max Continuous Power	2000W
Weight	219g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC12*6	22.2	2.7	500	59.94	8.34	4634	66℃ 10min
		4.6	750	102.12	7.34	5655
		6.4	1000	142.08	7.04	6492
		8.7	1250	193.14	6.47	7152
		11.2	1500	248.64	6.03	7754
		14	1750	310.8	5.63	8265
		17	2000	377.4	5.30	8822
		20.8	2250	461.76	4.87	9349
		24.4	2500	541.68	4.62	9747
		30.5	2750	677.1	4.06	10140
		38.9	3300	863.58	3.82	11104
	25	2.4	500	60	8.33	4652
		4	750	100	7.50	5676
		5.7	1000	142.5	7.02	6457
		8	1250	200	6.25	7168
		10.6	1500	265	5.66	7732
		12.9	1750	322.5	5.43	8222
		15.2	2000	380	5.26	8853
		18.4	2250	460	4.89	9360
		21.45	2500	536.25	4.66	9789
		25.6	2750	640	4.30	10166
		29.8	3000	745	4.03	10688
		40	3500	1000	3.50	11170
		46.8	3840	1170	3.28	12003
APC12*8	22.2	2.7	500	59.94	8.34	4214	72℃ 10min
		4.7	750	104.34	7.19	5140
		6.7	1000	148.74	6.72	5945
		9.1	1250	202.02	6.19	6480
		11.9	1500	264.18	5.68	7100
		15.1	1750	335.22	5.22	7723
		18.3	2000	406.26	4.92	8083
		22.7	2250	503.94	4.46	8668
		27.2	2500	603.84	4.14	9221
		32.8	2750	728.16	3.78	9800
		48.6	3260	1078.92	3.02	10530
	25	2.4	500	60	8.33	4233
		4.1	750	102.5	7.32	5162
		6	1000	150	6.67	5911
		8.2	1250	205	6.10	6452
		10.6	1500	265	5.66	7143
		13.3	1750	332.5	5.26	7745
		16.4	2000	410	4.88	8090
		20	2250	500	4.50	8633
		24.2	2500	605	4.13	9256
		30.9	2750	772.5	3.56	9909
		36.7	3000	917.5	3.27	10138
		57.9	3767	1447.5	2.60	11507
APC13*6.5	22.2	2.4	500	53.28	9.38	3975	79℃ 10min
		4	750	88.8	8.45	4831
		6.05	1000	134.31	7.45	5537
		8.1	1250	179.82	6.95	6151
		10.6	1500	235.32	6.37	6660
		13.2	1750	293.04	5.97	7191
		16	2000	355.2	5.63	7660
		19.2	2250	426.24	5.28	8121
		22.7	2500	503.94	4.96	8476
		26.3	2750	583.86	4.71	8886
		30.1	3000	668.22	4.49	9256
		37.4	3500	830.28	4.22	9863
		47.4	4000	1052.28	3.80	10591
	25	2.1	500	52.5	9.52	3962
		3.7	750	92.5	8.11	4853
		5.4	1000	135	7.41	5570
		7.3	1250	182.5	6.85	6144
		9.5	1500	237.5	6.32	6689
		11.8	1750	295	5.93	7139
		14.2	2000	355	5.63	7655
		17	2250	425	5.29	8144
		20	2500	500	5.00	8459
		23	2750	575	4.78	8852
		26.5	3000	662.5	4.53	9273
		35.3	3500	882.5	3.97	9853
		45.5	4000	1137.5	3.52	10428
		59.6	4450	1490	2.99	11580
APC13*8	22.2	2.3	500	51.06	9.79	3741	81℃ 3min
		4.1	750	91.02	8.24	4535
		6	1000	133.2	7.51	5189
		8.6	1250	190.92	6.55	5777
		11.6	1500	257.52	5.82	6256
		14	1750	310.8	5.63	6849
		16.9	2000	375.18	5.33	7338
		20.2	2250	448.44	5.02	7765
		24.2	2500	537.24	4.65	8074
		27.7	2750	614.94	4.47	8451
		32.9	3000	730.38	4.11	8866
		41.5	3500	921.3	3.80	9471
		56.8	4050	1260.96	3.21	10158
	25	2.2	500	55	9.09	3765
		3.6	750	90	8.33	4510
		5.5	1000	137.5	7.27	5173
		7.7	1250	192.5	6.49	5732
		9.8	1500	245	6.12	6295
		12.5	1750	312.5	5.60	6825
		15.1	2000	377.5	5.30	7320
		18	2250	450	5.00	7707
		21.2	2500	530	4.72	8090
		24.9	2750	622.5	4.42	8420
		28.15	3000	703.75	4.26	8802
		36.3	3500	907.5	3.86	9430
		52.9	4000	1322.5	3.02	9960
		70.8	4500	1770	2.54	10936
APC14*7	22.2	2.2	500	48.84	10.24	3429	90℃ 1min
		3.8	750	84.36	8.89	4135
		5.7	1000	126.54	7.90	4757
		7.7	1250	170.94	7.31	5152
		10.1	1500	224.22	6.69	5678
		12.4	1750	275.28	6.36	6153
		15.1	2000	335.22	5.97	6562
		18.4	2250	408.48	5.51	6827
		21.5	2500	477.3	5.24	7251
		25	2750	555	4.95	7566
		28.8	3000	639.36	4.69	7842
		36.2	3500	803.64	4.36	8422
		66.6	4430	1478.52	3.00	9742
	25	2	500	50	10.00	3430
		3.3	750	82.5	9.09	4122
		5.1	1000	127.5	7.84	4729
		7	1250	175	7.14	5171
		9	1500	225	6.67	5679
		11.1	1750	277.5	6.31	6124
		13.5	2000	337.5	5.93	6544
		16.1	2250	402.5	5.59	6883
		19.2	2500	480	5.21	7220
		22.2	2750	555	4.95	7533
		25.8	3000	645	4.65	7895
		33	3500	825	4.24	8448
		42.8	4000	1070	3.74	8934
		61.1	4500	1527.5	2.95	9742
		82.8	5012	2070	2.42	10414

KV780

Stator Diameter	35mm	Rotor Diameter	42.5mm
Stator Thickness	20mm	Body Length	45mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	60-80A
Motor Kv	780	Recommended Prop(inch)	4s(APC128/APC126/APC136.5/APC138/APC14*7)
No-load current	1.7A/10V	Weight for aerobatics airplane	2300g (5S APC126\APC136.5)
Motor Resistance	12mΩ	Weight for 3D airplane	2000g (5S APC126\APC136.5)
Max Continuous Current	83A/30s
Max Continuous Power	1395W
Weight	219g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC13*8	14.8	3.6	500	53.28	9.38	3829	85℃ 10min
		6.2	750	91.76	8.17	4506
		9.3	1000	137.64	7.27	5190
		12.7	1250	187.96	6.65	5760
		16.9	1500	250.12	6.00	6369
		21	1750	310.8	5.63	6787
		26	2000	384.8	5.20	7250
		31	2250	458.8	4.90	7650
		36.8	2500	544.64	4.59	8029
		43.7	2750	646.76	4.25	8410
		58.6	3260	867.28	3.76	9030
	16.8	3.4	500	57.12	8.75	3637
		5.4	750	90.72	8.27	4569
		8.4	1000	141.12	7.09	5214
		11.7	1250	196.56	6.36	5788
		15	1500	252	5.95	6300
		18.8	1750	315.84	5.54	6673
		22.8	2000	383.04	5.22	7149
		27.3	2250	458.64	4.91	7571
		32.6	2500	547.68	4.56	8011
		38.2	2750	641.76	4.29	8450
		44.8	3000	752.64	3.99	8670
		72.1	3950	1211.28	3.26	10000
APC12*6	14.8	4	500	59.2	8.45	4629	92℃ 5min
		6.7	750	99.16	7.56	5655
		9.9	1000	146.52	6.83	6459
		13.5	1250	199.8	6.26	7180
		17.4	1500	257.52	5.82	7773
		22.1	1750	327.08	5.35	8273
		26.9	2000	398.12	5.02	8880
		32.5	2250	481	4.68	9211
		42.2	2700	624.56	4.32	9872
	16.8	3.65	500	61.32	8.15	4648
		6	750	100.8	7.44	5637
		8.5	1000	142.8	7.00	6482
		11.8	1250	198.24	6.31	7152
		15.4	1500	258.72	5.80	7764
		19.3	1750	324.24	5.40	8257
		24	2000	403.2	4.96	8866
		28.4	2250	477.12	4.72	9135
		33.7	2500	566.16	4.42	9611
		52.8	3160	887.04	3.56	10792
	18.5	3.3	500	61.05	8.19	4688
		5.4	750	99.9	7.51	5677
		8.1	1000	149.85	6.67	6456
		11	1250	203.5	6.14	7173
		14	1500	259	5.79	7769
		17.4	1750	321.9	5.44	8232
		21.6	2000	399.6	5.01	8860
		26	2250	481	4.68	9355
		30.7	2500	567.95	4.40	9766
		37	2750	684.5	4.02	10050
		42.7	3000	789.95	3.80	10661
		58.7	3500	1085.95	3.22	11277
		63.2	3710	1169.2	3.17	11644
	21	3.1	500	65.1	7.68	4642
		5.05	750	106.05	7.07	5658
		7.3	1000	153.3	6.52	6475
		9.9	1250	207.9	6.01	7135
		12.3	1500	258.3	5.81	7749
		15.6	1750	327.6	5.34	8252
		19.3	2000	405.3	4.93	8843
		23.2	2250	487.2	4.62	9354
		27.2	2500	571.2	4.38	9772
		32.3	2750	678.3	4.05	10155
		37.9	3000	795.9	3.77	10470
		50.4	3500	1058.4	3.31	11340
		68	4000	1428	2.80	12120
		78.9	4330	1656.9	2.61	12710
APC12*8	14.8	3.8	500	56.24	8.89	4138	115℃ 2min
		7.1	750	105.08	7.14	5154
		10.5	1000	155.4	6.44	5866
		14.3	1250	211.64	5.91	6532
		18.4	1500	272.32	5.51	7144
		23.4	1750	346.32	5.05	7780
		28.4	2000	420.32	4.76	8240
		35.6	2250	526.88	4.27	8640
		49.7	2650	735.56	3.60	9414
	16.8	3.6	500	60.48	8.27	4147
		6.3	750	105.84	7.09	5029
		9.2	1000	154.56	6.47	5820
		12.7	1250	213.36	5.86	6518
		16	1500	268.8	5.58	7150
		21	1750	352.8	4.96	7628
		26.3	2000	441.84	4.53	8127
		30.8	2250	517.44	4.35	8760
		37.4	2500	628.32	3.98	9219
		50	2750	840	3.27	9801
		64	3110	1075.2	2.89	10233
	18.5	3.5	500	64.75	7.72	4175
		5.6	750	103.6	7.24	5042
		8.2	1000	151.7	6.59	5832
		11.7	1250	216.45	5.78	6509
		15	1500	277.5	5.41	7172
		18.6	1750	344.1	5.09	7649
		22.75	2000	420.875	4.75	8152
		27.5	2250	508.75	4.42	8770
		33	2500	610.5	4.10	9268
		42.9	2750	793.65	3.47	9920
		52.1	3000	963.85	3.11	10332
		75.1	3500	1389.35	2.52	11270
	21	3	500	63	7.94	4180
		5.2	750	109.2	6.87	5060
		7.9	1000	165.9	6.03	5810
		10.4	1250	218.4	5.72	6500
		13.5	1500	283.5	5.29	7190
		16.25	1750	341.25	5.13	7647
		20.3	2000	426.3	4.69	8163
		24.5	2250	514.5	4.37	8748
		30.4	2500	638.4	3.92	9274
		37.4	2750	785.4	3.50	9900
		47.9	3000	1005.9	2.98	10302
		65.3	3500	1371.3	2.55	11196
		89.6	4150	1881.6	2.21	11930
APC13*6.5	14.8	3.7	500	54.76	9.13	3940	75℃ 10min
		6.3	750	93.24	8.04	4766
		9.2	1000	136.16	7.34	5482
		12.7	1250	187.96	6.65	6053
		16.6	1500	245.68	6.11	6637
		20.8	1750	307.84	5.68	7052
		25.8	2000	381.84	5.24	7627
		30.9	2250	457.32	4.92	8061
		36.6	2500	541.68	4.62	8385
		43	2750	636.4	4.32	8793
		54.6	3220	808.08	3.98	9397
	16.8	3.3	500	55.44	9.02	3971
		5.65	750	94.92	7.90	4744
		8.4	1000	141.12	7.09	5470
		11.3	1250	189.84	6.58	6022
		14.6	1500	245.28	6.12	6545
		18.6	1750	312.48	5.60	7040
		22.7	2000	381.36	5.24	7519
		27	2250	453.6	4.96	8012
		32.6	2500	547.68	4.56	8329
		37.5	2750	630	4.37	8826
		43	3000	722.4	4.15	9100
		68.3	3850	1147.44	3.36	10208
APC14*7	14.8	3.4	500	50.32	9.94	3325	97℃ 3min
		5.8	750	85.84	8.74	4062
		8.9	1000	131.72	7.59	4653
		12.1	1250	179.08	6.98	5238
		15	1500	222	6.76	5736
		19.5	1750	288.6	6.06	6121
		24	2000	355.2	5.63	6556
		28.8	2250	426.24	5.28	6847
		34.5	2500	510.6	4.90	7326
		40.8	2750	603.84	4.55	7603
		48.4	3000	716.32	4.19	7895
		68.7	3740	1016.76	3.68	8677
	16.8	3	500	50.4	9.92	3313
		5.2	750	87.36	8.59	4031
		7.7	1000	129.36	7.73	4678
		10.8	1250	181.44	6.89	5250
		13.8	1500	231.84	6.47	5712
		17.5	1750	294	5.95	6133
		21.4	2000	359.52	5.56	6527
		25.7	2250	431.76	5.21	6865
		30.2	2500	507.36	4.93	7320
		35.4	2750	594.72	4.62	7596
		41.3	3000	693.84	4.32	7909
		53.8	3500	903.84	3.87	8654
		83.6	4350	1404.48	3.10	9461

[/TABS]

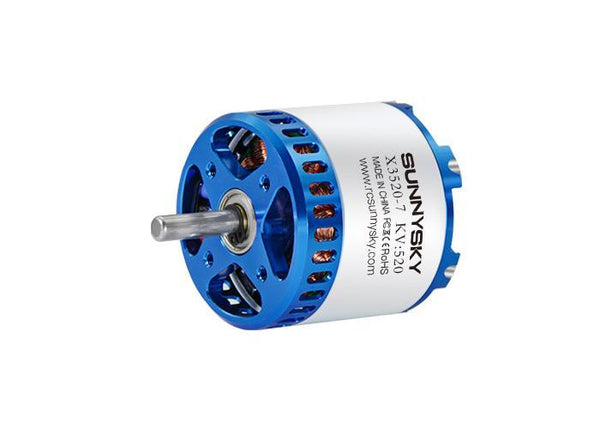

SunnySky X Series V3 X3520 V3 Brushless Motors
