Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
GWS8043	7.4	0.4	50	2.96	16.89	2926	81℃ 5min
		1.1	100	8.14	12.29	4010
		1.7	125	12.58	9.94	4437
		2.2	150	16.28	9.21	4863
		2.9	175	21.46	8.15	5228
		3.7	200	27.38	7.30	5575
		4.7	225	34.78	6.47	5860
		5.9	264	43.66	6.05	6285
	8.4	0.4	50	3.36	14.88	2930
		0.9	100	7.56	13.23	4050
		1.4	125	11.76	10.63	4357
		1.9	150	15.96	9.40	4833
		2.5	175	21.00	8.33	5154
		3.2	200	26.88	7.44	5544
		3.9	225	32.76	6.87	5796
		4.8	250	40.32	6.20	6210
		6.9	316	57.96	5.45	6765
GWS8060	7.4	0.4	50	2.96	16.89	2679	82℃ 5min
		1.3	100	9.62	10.40	3692
		1.9	125	14.06	8.89	4040
		2.6	150	19.24	7.80	4367
		3.6	175	26.64	6.57	4738
		4.6	200	34.04	5.88	5060
		5.7	225	42.18	5.33	5318
		6.8	260	50.32	5.17	5525
	8.4	0.4	50	3.36	14.88	2680
		1.1	100	9.24	10.82	3650
		1.7	125	14.28	8.75	4041
		2.4	150	20.16	7.44	4370
		3.3	175	27.72	6.31	4707
		4.2	200	35.28	5.67	5089
		5.3	225	44.52	5.05	5403
		6.5	250	54.60	4.58	5620
		7.8	287	65.52	4.38	5924
GWS9050	7.4	0.4	50	2.96	16.93	2464	92℃ 5min
		1.1	100	8.14	12.29	3368
		1.5	125	11.10	11.26	3800
		2.2	150	16.28	9.21	4138
		2.9	175	21.46	8.15	4413
		3.7	200	27.38	7.30	4713
		4.6	225	34.04	6.61	4980
		5.4	250	39.96	6.26	5193
		6.9	296	51.06	5.80	5549
	8.4	0.3	50	2.52	19.89	2560
		0.9	100	7.56	13.23	3433
		1.3	125	10.92	11.45	3786
		1.9	150	15.96	9.40	4133
		2.5	175	21.00	8.33	4429
		3.2	200	26.88	7.44	4754
		3.9	225	32.76	6.87	4967
		4.9	250	41.16	6.07	5187
		7.6	300	63.84	4.70	5667
		8.7	340	73.08	4.65	5946

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
GWS8043	7.4	0.4	50	2.96	16.89	2824	100℃ 2min
		1.1	100	8.14	12.29	3942
		1.7	125	12.58	9.94	4427
		2.2	150	16.28	9.21	4816
		3	175	22.20	7.88	5180
		3.8	200	28.12	7.11	5490
		5.6	250	41.44	6.03	6077
		7	290	51.80	5.60	6450
	8.4	0.3	50	2.52	19.84	2923
		0.9	100	7.56	13.23	3950
		1.4	125	11.76	10.63	4378
		2	150	16.80	8.93	4830
		2.6	175	21.84	8.01	5160
		3.3	200	27.72	7.22	5506
		5	250	42.00	5.95	6096
		7.1	300	59.64	5.03	6658
		8	330	67.20	4.91	6800
GWS8060	7.4	0.4	50	2.96	16.89	2634	95℃ 2min15s
		1.3	100	9.62	10.40	3655
		2	125	14.80	8.45	4030
		2.7	150	19.98	7.51	4370
		3.7	175	27.38	6.39	4736
		4.8	200	35.52	5.63	5044
		7.3	250	54.02	4.63	5525
		8	270	59.20	4.56	5727
	8.4	0.4	50	3.36	14.88	2628
		1.1	100	9.24	10.82	3609
		1.7	125	14.28	8.75	4016
		2.5	150	21.00	7.14	4712
		3.4	175	28.56	6.13	4702
		4.3	200	36.12	5.54	5000
		6.9	250	57.96	4.31	5596
		9.2	305	77.28	3.95	6026
GWS9050	7.4	0.4	50	2.96	16.93	2473	99℃ 1min30s
		1	100	7.40	13.51	3448
		1.5	125	11.10	11.26	3826
		2.2	150	16.28	9.21	4098
		2.9	175	21.46	8.15	4403
		3.7	200	27.38	7.30	4715
		5.6	250	41.44	6.03	5208
		8.1	325	59.94	5.42	5734
	8.4	0.3	50	2.52	19.89	2500
		0.9	100	7.56	13.23	3480
		1.4	125	11.76	10.63	3840
		1.9	150	15.96	9.40	4078
		2.5	175	21.00	8.33	4420
		3.3	200	27.72	7.22	4720
		5.1	250	42.84	5.84	5244
		7.7	300	64.68	4.64	5659
		9.1	349	76.44	4.57	6030

[/TABS]

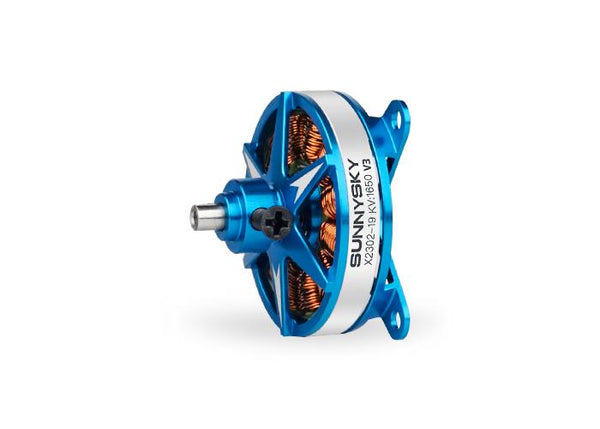

SunnySky X Series V3 X2302 V3 Brushless Motors
