[TABS]OVERVIEW

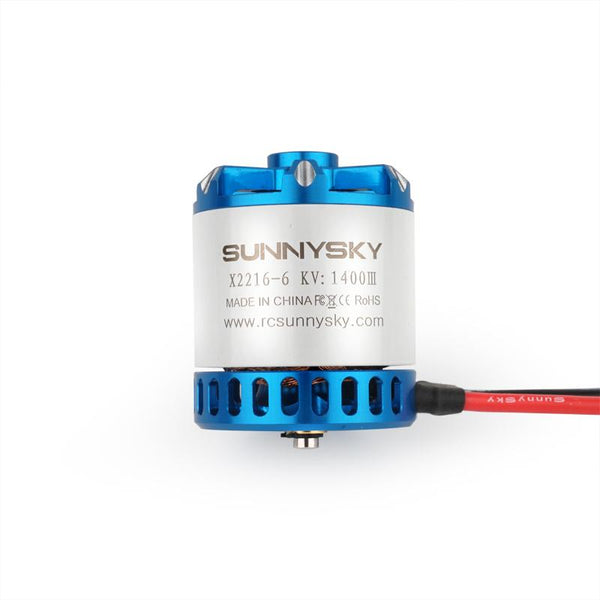

These page shows the short shaft version of X2216 motors.

There are two version of this motor: long shaft version and short shaft version. Check the following photo for the difference between the versions. Both of them come with the same prop adapter and motor mount.

comparison SunnySky X2216 short shaft and long shaft versions

880KV, 1100KV, 1400KV, and 2600KV motors are short shaft version. Check the following pictures for details of the difference of long and short shaft versions.

KV880

Stator Diameter	22mm	Rotor Diameter	27.7mm
Stator Thickness	16mm	Body Length	34mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	50A
Motor Kv	880	Recommended Prop(inch)	APC11*4.7 /APC1047 /APC9047/APC9045
No-load current	0.5A/10V	Weight for aerobatics airplane	850g(4S 9060\1047\1050)
Motor Resistance	89mΩ	Single weight for multirotors	500g(3S 1038\1047)
Max Continuous Current	32A/30s	Single weight for multirotors	550g(4S 8038\8043\8045\9047)
Max Continuous Power	450W	Weight for 3D airplane	800g(3S 1147)
Weight	67.5g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC11*4.7	11.1	0.6	100	6.66	15.02	2230	75℃ 2min10s
		1.6	200	17.76	11.26	3054
		2.8	300	31.08	9.65	3618
		4.1	400	45.51	8.79	4119
		5.65	500	62.715	7.97	4558
		7.4	600	82.14	7.30	4945
		9.2	700	102.12	6.85	5287
		11.2	800	124.32	6.44	5640
		13.7	900	152.07	5.92	5967
		16.1	1000	178.71	5.60	6193
		23.4	1320	259.74	5.08	6975
APC9060	14.8	0.7	100	10.36	9.65	3288	66℃ 3min
		1.6	200	23.68	8.45	4513
		2.8	300	41.44	7.24	5393
		4	400	59.2	6.76	6125
		5.3	500	78.44	6.37	6899
		6.8	600	100.64	5.96	7450
		8.4	700	124.32	5.63	7940
		10.1	800	149.48	5.35	8503
		12.1	900	179.08	5.03	8945
		14.4	1000	213.12	4.69	9372
		19.9	1290	294.52	4.38	10547
APC9045	11.1	1	100	11.1	9.01	3430	63℃ 5min
		2.1	200	23.31	8.58	4770
		3.3	300	36.63	8.19	5857
		4.7	400	52.17	7.67	6750
		6.35	500	70.485	7.09	7426
		8.1	600	89.91	6.67	8081
		10.6	737	117.66	6.26	8836
	14.8	0.7	100	10.36	9.65	3446
		1.6	200	23.68	8.45	4757
		2.7	300	39.96	7.51	5836
		3.7	400	54.76	7.30	6639
		4.9	500	72.52	6.89	7450
		6.3	600	93.24	6.44	8067
		7.8	700	115.44	6.06	8600
		9.5	800	140.6	5.69	9234
		11.2	900	165.76	5.43	9696
		13.05	1000	193.14	5.18	10117
		16.3	1180	241.24	4.89	10972
APC1047	11.1	0.7	100	7.77	12.87	2664	100℃ 1min25s
		1.8	200	19.98	10.01	3654
		3	300	33.3	9.01	4328
		4.4	400	48.84	8.19	4933
		6	500	66.6	7.51	5405
		7.55	600	83.805	7.16	5881
		9.6	700	106.56	6.57	6300
		11.6	800	128.76	6.21	6683
		13.75	900	152.625	5.90	6988
		16.2	1000	179.82	5.56	7364
		18.2	1105	202.02	5.47	7718
	14.8	0.6	100	8.88	11.26	2664
		1.3	200	19.24	10.40	3598
		2.3	300	34.04	8.81	4350
		3.4	400	50.32	7.95	4945
		4.7	500	69.56	7.19	5501
		6	600	88.8	6.76	5853
		7.6	700	112.48	6.22	6255
		9.05	800	133.94	5.97	6700
		10.9	900	161.32	5.58	7026
		12.8	1000	189.44	5.28	7403
		16.95	1200	250.86	4.78	8003
		22.1	1400	327.08	4.28	8625
		27.2	1650	402.56	4.10	9247

KV950

Stator Diameter	22mm	Rotor Diameter	27.7mm
Stator Thickness	16mm	Body Length	34mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	50A
Motor Kv	950	Recommended Prop(inch)	APC11*4.7/APC1047/APC9047/APC9045
No-load current	0.7A/10V	Weight for aerobatics airplane	850g(4S 9060\1047\1050)
Motor Resistance	73.6mΩ	Single weight for multirotors	500g(3S 1038\1047)
Max Continuous Current	32A/30s	Single weight for multirotors	550g(4S 8038\8043\8045\9047)
Max Continuous Power	450W	Weight for 3D airplane	800g(3S 1147)
Weight	69g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC11*4.7	11.1	0.7	100	7.77	12.87	2123	96℃ 30S
		1.6	200	17.76	11.26	3035
		2.8	300	31.08	9.65	3652
		4.1	400	45.51	8.79	4136
		5.8	500	64.38	7.77	4581
		7.5	600	83.25	7.21	4866
		9.8	700	108.78	6.44	5250
		11.3	800	125.43	6.38	5577
		13.7	900	152.07	5.92	6035
		16.5	1000	183.15	5.46	6268
		19.1	1100	212.01	5.19	6475
		22.3	1200	247.53	4.85	6877
		25.3	1300	280.83	4.63	7139
		29	1470	321.9	4.57	7662
APC9060	14.8	0.7	100	10.36	9.65	3155	87℃ 2min
		1.6	200	23.68	8.45	4352
		2.7	300	39.96	7.51	5296
		4.1	400	60.68	6.59	6142
		5.4	500	79.92	6.26	6697
		6.8	600	100.64	5.96	7355
		8.5	700	125.8	5.56	7862
		10.3	800	152.44	5.25	8441
		12.55	900	185.74	4.85	8854
		14.5	1000	214.6	4.66	9267
		16.8	1100	248.64	4.42	9774
		19.3	1200	285.64	4.20	10131
		21.8	1300	322.64	4.03	10588
		24.4	1450	361.12	4.02	11091
APC1047	11.1	0.7	100	7.77	12.87	2546	97℃10S
		1.8	200	19.98	10.01	3509
		3	300	33.3	9.01	4245
		4.4	400	48.84	8.19	4781
		6.2	500	68.82	7.27	5351
		7.8	600	86.58	6.93	5829
		9.8	700	108.78	6.44	6142
		11.7	800	129.87	6.16	6532
		14.1	900	156.51	5.75	6731
		16.5	1000	183.15	5.46	7258
		19	1100	210.9	5.22	7662
		22.8	1282	253.08	5.07	8523
	14.8	0.6	100	8.88	11.26	2620
		1.3	200	19.24	10.40	3511
		2.3	300	34.04	8.81	4328
		3.4	400	50.32	7.95	4956
		4.6	500	68.08	7.34	5322
		6.4	600	94.72	6.33	5847
		7.6	700	112.48	6.22	6166
		9.3	800	137.64	5.81	6571
		11.3	900	167.24	5.38	6742
		13.2	1000	195.36	5.12	7263
		14.9	1100	220.52	4.99	7680
		17.4	1200	257.52	4.66	8004
		20.1	1300	297.48	4.37	8344
		22.8	1400	337.44	4.15	8671
		26.2	1500	387.76	3.87	8876
		29.2	1600	432.16	3.70	9100
		34.5	1860	510.6	3.64	9790
APC9045	11.1	1	100	11.1	9.01	3422	70℃ 3min
		2.1	200	23.31	8.58	4761
		3.3	300	36.63	8.19	5766
		4.8	400	53.28	7.51	6625
		6.4	500	71.04	7.04	7435
		8.1	600	89.91	6.67	8052
		10.1	700	112.11	6.24	8647
		12.9	837	143.19	5.85	9373
	14.8	0.7	100	10.36	9.65	3460
		1.6	200	23.68	8.45	4711
		2.7	300	39.96	7.51	5795
		3.8	400	56.24	7.11	6658
		5	500	74	6.76	7359
		6.35	600	93.98	6.38	8070
		8	700	118.4	5.91	8629
		9.5	800	140.6	5.69	9144
		11.3	900	167.24	5.38	9667
		13.2	1000	195.36	5.12	10177
		17.3	1200	256.04	4.69	11167
		20.2	1350	298.96	4.52	11593

KV1100

Stator Diameter	22mm	Rotor Diameter	27.7mm
Stator Thickness	16mm	Body Length	34mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	30-40A
Motor Kv	1100	Recommended Prop(inch)	APC8060 /APC1047 /APC9047/APC9045
No-load current	0.8A/10V	Weight for training airplane	900g(3S 1047\1050)
Motor Resistance	54mΩ	Weight for 3D airplane	750g(3S 1050\1047)
Max Continuous Current	34A/30s
Max Continuous Power	480W
Weight	69g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC10*4.7	11.1	0.7	100	7.77	12.87	2563	82℃ 3min
		1.7	200	18.87	10.60	3493
		3.1	300	34.41	8.72	4246
		4.6	400	51.06	7.83	4753
		6.5	500	72.15	6.93	5310
		7.9	600	87.69	6.84	5817
		10	700	111	6.31	6164
		12	800	133.2	6.01	6584
		14.3	900	158.73	5.67	6896
		16.9	1000	187.59	5.33	7320
		19.8	1100	219.78	5.01	7630
		22.4	1200	248.64	4.83	7943
		26.4	1300	293.04	4.44	8249
		28.8	1400	319.68	4.38	8907
APC9045	11.1	0.9	100	9.99	10.01	3424	80℃ 3min
		2.1	200	23.31	8.58	4761
		3.4	300	37.74	7.95	5725
		5	400	55.5	7.21	6631
		6.5	500	72.15	6.93	7365
		8.4	600	93.24	6.44	8049
		10.3	700	114.33	6.12	8643
		12.7	800	140.97	5.67	9206
		14.9	900	165.39	5.44	9610
		18.5	1065	205.35	5.19	10463
	14.8	0.7	100	10.36	9.65	3365
		1.7	200	25.16	7.95	4630
		2.6	300	38.48	7.80	5731
		3.9	400	57.72	6.93	6589
		5	500	74	6.76	7379
		6.5	600	96.2	6.24	7956
		8.2	700	121.36	5.77	8618
		9.9	800	146.52	5.46	9248
		11.5	900	170.2	5.29	9591
		14	1000	207.2	4.83	10149
		15.9	1100	235.32	4.67	10554
		18	1200	266.4	4.50	10935
		20	1300	296	4.39	11427
		22.6	1400	334.48	4.19	11922
		27	1500	399.6	3.75	12192
		29	1600	429.2	3.73	12833
APC9060	11.1	1	100	11.1	9.01	3151	90℃ 30s
		2.2	200	24.42	8.19	4390
		3.4	300	37.74	7.95	4301
		5.3	400	58.83	6.80	6155
		7	500	77.7	6.44	6679
		8.6	600	95.46	6.29	7327
		10.9	700	120.99	5.79	7869
		13.2	800	146.52	5.46	8507
		15.6	900	173.16	5.20	8862
		18.6	1000	206.46	4.84	9325
		21.3	1100	236.43	4.65	9883
	14.8	0.8	100	11.84	8.45	3139
		1.6	200	23.68	8.45	4396
		2.7	300	39.96	7.51	5351
		4.1	400	60.68	6.59	6117
		5.6	500	82.88	6.03	6728
		7.1	600	105.08	5.71	7342
		8.5	700	125.8	5.56	7860
		10.4	800	153.92	5.20	8535
		12.5	900	185	4.86	8830
		14.9	1000	220.52	4.53	9279
		16.6	1100	245.68	4.48	9765
		19.9	1200	294.52	4.07	10181
		22.1	1300	327.08	3.97	10518
		25.3	1400	374.44	3.74	10923
		27.9	1500	412.92	3.63	11237
		32.8	1640	485.44	3.38	12033
APC9047	11.1	0.8	100	8.88	11.26	3253	76℃ 3min
		2	200	22.2	9.01	4621
		3.3	300	36.63	8.19	5608
		4.9	400	54.39	7.35	6529
		6.3	500	69.93	7.15	7250
		8.2	600	91.02	6.59	7966
		10.2	700	113.22	6.18	8699
		12.1	800	134.31	5.96	9324
		14.2	900	157.62	5.71	9970
		16.9	1000	187.59	5.33	10551
		18.5	1080	205.35	5.26	11120
	14.8	0.7	100	10.36	9.65	3176
		1.5	200	22.2	9.01	4513
		2.6	300	38.48	7.80	5553
		3.7	400	54.76	7.30	6517
		5.1	500	75.48	6.62	7357
		6.4	600	94.72	6.33	8096
		8	700	118.4	5.91	8753
		9.5	800	140.6	5.69	9355
		11.4	900	168.72	5.33	10054
		13.3	1000	196.84	5.08	10665
		15.35	1100	227.18	4.84	11204
		17.5	1200	259	4.63	11708
		19.3	1300	285.64	4.55	12237
		21.6	1400	319.68	4.38	12837
		25.7	1600	380.36	4.21	13315
APC8060	14.8	0.9	100	13.32	7.51	3863	63℃ 10min
		2.2	200	32.56	6.14	5408
		3.7	300	54.76	5.48	6557
		5.2	400	76.96	5.20	7485
		7.1	500	105.08	4.76	8268
		9	600	133.2	4.50	9014
		11.5	700	170.2	4.11	9683
		15.15	800	224.22	3.57	10376
		17.45	900	258.26	3.48	10948
		20.1	1000	297.48	3.36	11453
		23.7	1100	350.76	3.14	11970
		28	1200	414.4	2.90	13058

KV1250

Stator Diameter	22mm	Rotor Diameter	27.7mm
Stator Thickness	16mm	Body Length	34mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	40A
Motor Kv	1250	Recommended Prop(inch)	APC8060/APC1047/APC9047/APC9045
No-load current	1A/10V	Weight for aerobatics airplane	850g(3S 9060\9047\9045)(4S 8060)
Motor Resistance	45mΩ	Weight for 3D airplane	800g(3S 9047\1047)
Max Continuous Current	40A/30s
Max Continuous Power	600W
Weight	69g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC10*4.7	11.1	0.8	100	8.88	11.26	2570	87℃ 1min40s
		1.8	200	19.98	10.01	3568
		3.1	300	34.41	8.72	4230
		4.8	400	53.28	7.51	4842
		6.5	500	72.15	6.93	5364
		8.5	600	94.35	6.36	5781
		10.9	700	120.99	5.79	6251
		13	800	144.3	5.54	6616
		15.8	900	175.38	5.13	6962
		18.5	1000	205.35	4.87	7227
		21.8	1100	241.98	4.55	7629
		24.8	1200	275.28	4.36	7924
		27.6	1300	306.36	4.24	8244
		32.3	1400	358.53	3.90	8542
		36.3	1500	402.93	3.72	8789
		42.7	1750	473.97	3.69	9332
APC9060	11.1	1	100	11.1	9.01	3115	60℃ 10min
		2.3	200	25.53	7.83	4358
		4	300	44.4	6.76	5238
		5.5	400	61.05	6.55	5991
		7.2	500	79.92	6.26	6778
		9.2	600	102.12	5.88	7305
		11.7	700	129.87	5.39	7876
		14.1	800	156.51	5.11	8360
		17.6	900	195.36	4.61	8877
		19.9	1000	220.89	4.53	9377
		23.6	1100	261.96	4.20	9845
		26.4	1200	293.04	4.10	10250
		29.5	1333	327.45	4.07	10589
APC9045	11.1	1	100	11.1	9.01	3365	63℃ 10min
		2.2	200	24.42	8.19	4732
		3.7	300	41.07	7.30	5730
		5.3	400	58.83	6.80	6539
		6.9	500	76.59	6.53	7371
		8.8	600	97.68	6.14	7983
		11	700	122.1	5.73	8544
		13.1	800	145.41	5.50	9094
		15.6	900	173.16	5.20	9613
		18.25	1000	202.575	4.94	10134
		20.9	1100	231.99	4.74	10655
		25	1264	277.5	4.55	11186
APC9047	11.1	0.9	100	9.99	10.01	3240	52℃ 10min
		2.1	200	23.31	8.58	4596
		3.6	300	39.96	7.51	5603
		5.3	400	58.83	6.80	6431
		6.7	500	74.37	6.72	7226
		8.4	600	93.24	6.44	7916
		10.5	700	116.55	6.01	8532
		13	800	144.3	5.54	9259
		15.6	900	173.16	5.20	9791
		17.8	1000	197.58	5.06	10352
		20.4	1100	226.44	4.86	10982
		24.2	1269	268.62	4.72	11395
APC8060	11.1	1.4	100	15.54	6.44	3811	76℃ 10min10s
		3.1	200	34.41	5.81	5370
		5	300	55.5	5.41	6548
		7.05	400	78.255	5.11	7532
		9.2	500	102.12	4.90	8319
		11.5	600	127.65	4.70	9151
		14.3	700	158.73	4.41	9723
		17.7	800	196.47	4.07	10511
		24.3	966	269.73	3.58	11303
	14.8	1	100	14.8	6.76	3854
		2.4	200	35.52	5.63	5420
		3.9	300	57.72	5.20	6498
		5.5	400	81.4	4.91	7527
		7.4	500	109.52	4.57	8352
		9.45	600	139.86	4.29	9123
		11.7	700	173.16	4.04	9890
		14.1	800	208.68	3.83	10536
		17	900	251.6	3.58	11011
		20.6	1000	304.88	3.28	11640
		24.6	1100	364.08	3.02	12107
		28	1200	414.4	2.90	12705
		36.2	1371	535.76	2.56	13576

KV1400

Stator Diameter	22mm	Rotor Diameter	27.7mm
Stator Thickness	16mm	Body Length	34mm
No.of Stator Slots	12	Max Lipo Cell	3-4S
No.of Rotor Poles	14	ESC	40-50A
Motor Kv	1400	Recommended Prop(inch)	APC8060/APC9047/APC9045
No-load current	1.2A/10V	Weight for aerobatics airplane	850g(3S 9060\9047\9045) (4S 8060)
Motor Resistance	32.2mΩ	Weight for 3D airplane	750g(3S 9047)
Max Continuous Current	50A/30s
Max Continuous Power	740W
Weight	71g

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	RPM	Load temperature in 100% throttle
APC9047	11.1	0.9	100	9.99	10.01	3203	62℃ 10min
		2.1	200	23.31	8.58	4615
		3.6	300	39.96	7.51	5711
		5.4	400	59.94	6.67	6656
		7	500	77.7	6.44	7405
		9	600	99.9	6.01	8071
		11.1	700	123.21	5.68	8840
		13.5	800	149.85	5.34	9490
		16.3	900	180.93	4.97	10165
		18.4	1000	204.24	4.90	10769
		21.4	1100	237.54	4.63	11264
		23.9	1200	265.29	4.52	11820
		27.8	1300	308.58	4.21	12337
		31.4	1496	348.54	4.29	12847
APC9060	11.1	0.9	100	9.99	10.01	3152	64℃ 10min
		2.3	200	25.53	7.83	4325
		3.8	300	42.18	7.11	5229
		5.7	400	63.27	6.32	6109
		7.8	500	86.58	5.78	6795
		10.1	600	112.11	5.35	7308
		12.3	700	136.53	5.13	7940
		15.2	800	168.72	4.74	8582
		18.3	900	203.13	4.43	8934
		21.4	1000	237.54	4.21	9334
		24.9	1100	276.39	3.98	9810
		28.7	1200	318.57	3.77	10178
		32.1	1300	356.31	3.65	10655
		36.8	1400	408.48	3.43	10952
		41	1545	455.1	3.39	11670
APC9045	11.1	1	100	11.1	9.01	3334	54℃ 10min
		2.2	200	24.42	8.19	4759
		3.8	300	42.18	7.11	5779
		5.5	400	61.05	6.55	6623
		7.2	500	79.92	6.26	7414
		9.2	600	102.12	5.88	7964
		11.6	700	128.76	5.44	8694
		13.8	800	153.18	5.22	9193
		16.55	900	183.705	4.90	9712
		19.2	1000	213.12	4.69	10137
		21.9	1100	243.09	4.53	10533
		25.5	1200	283.05	4.24	11109
		29	1300	321.9	4.04	11416
		34.7	1510	385.17	3.92	12407
APC7060	14.8	1.3	100	19.24	5.20	4984	61℃ 10min
		2.9	200	42.92	4.66	7021
		4.8	300	71.04	4.22	8535
		7	400	103.6	3.86	9657
		9.2	500	136.16	3.67	10800
		12	600	177.6	3.38	11870
		15.1	700	223.48	3.13	12760
		18.4	800	272.32	2.94	13542
		22	900	325.6	2.76	14384
		26.5	1000	392.2	2.55	15091
		31.2	1100	461.76	2.38	15856
		37.6	1296	556.48	2.33	16818
APC8060	11.1	1.1	100	12.21	8.19	3800	83℃ 40S
		3.2	200	35.52	5.63	5342
		5.2	300	57.72	5.20	6528
		7.3	400	81.03	4.94	7511
		9.7	500	107.67	4.64	8236
		12.5	600	138.75	4.32	9105
		15.9	700	176.49	3.97	9635
		19.6	800	217.56	3.68	10385
		23.3	900	258.63	3.48	10920
		27.5	1000	305.25	3.28	11538
		33.7	1150	374.07	3.07	12465
	14.8	1	100	14.8	6.76	3836
		2.4	200	35.52	5.63	5380
		3.9	300	57.72	5.20	6592
		5.5	400	81.4	4.91	7524
		7.8	500	115.44	4.33	8245
		9.8	600	145.04	4.14	8963
		12.3	700	182.04	3.85	9716
		15	800	222	3.60	10338
		17.9	900	264.92	3.40	11015
		21.5	1000	318.2	3.14	11520
		25.2	1100	372.96	2.95	12141
		28.9	1200	427.72	2.81	12533
		34.1	1300	504.68	2.58	13158
		39.5	1400	584.6	2.39	13649
		51.4	1660	760.72	2.18	14825

KV2600

Test data of this motor can be downloaded by clicking this link.

[/TABS]

SunnySky X Series V3 X2216 V3 Brushless Motors Short Shaft Version
